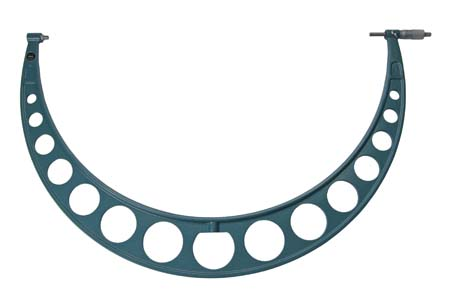

Mitutoyo Imperial Analogue Outside Micrometer 33-34", Ratchet Stop 103-210

Imperial Analogue Outside Micrometer - Ratchet Stop

Series 103

A Mitutoyo basic, cost effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement.

Specifications

• Digital/Analog: Analog
• Inch-Metric: Inch
• Graduation: 0,001"
• Maximum Permissible Error J MPE: ±0.001"
• Flatness: 0.000024"
• Parallelism: 0.00008"
• Measuring spindle: With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
• Scale: Thimble and sleeve satin chrome finish, ø18 mm
• Measuring force: 5-10 N (from 100 mm upward : 5-15 N)
• Delivered: Including box, setting standard (from 1" upward), key, certificate of inspection (0-2" range)
• Mass: 175 g

All images are for representation only.
