Mitutoyo Imperial Analogue Outside Micrometer 5-6", Ratchet Stop 103-182

Roll over image to zoom in Click on image to zoom

Mitutoyo Imperial Analogue Outside Micrometer 5-6", Ratchet Stop 103-182

Name: Mitutoyo Imperial Analogue Outside Micrometer 5-6", Ratchet Stop 103-182
Brand: Mitutoyo
SKU: 103-182
Price: 107.0 GBP
Availability: InStock

MitutoyoSKU: 103-182

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£107.00 £146.00

Quantity:

All prices exclude VAT, which will be added at checkout.

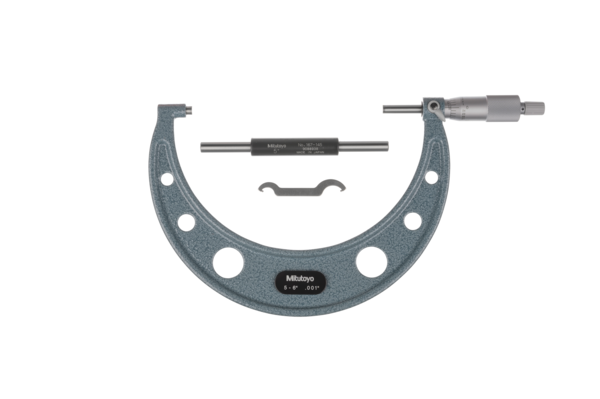

Imperial Analogue Outside Micrometer - Ratchet Stop

Series 103

A Mitutoyo basic, cost effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement.

Specifications

Digital/Analog: Analog
Inch-Metric: Inch
Graduation: 0,001"
Maximum Permissible Error J MPE: ±0.001"
Flatness: 0.000024"
Parallelism: 0.00008"
Measuring spindle: With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
Scale: Thimble and sleeve satin chrome finish, ø18 mm
Measuring force: 5-10 N (from 100 mm upward : 5-15 N)
Delivered: Including box, setting standard (from 1" upward), key, certificate of inspection (0-2" range)
Mass: 175 g

All images are for representation only.

Product Information
Part Number	103-182
Measuring Ranges	5-6"
Graduation	.001"
Unit of Measurement	Inch
Measuring Force	5-10N
Type	Standard
Constant Force Device	Ratchet Stop
Flatness	.000024"
Parallelism	.00012"
Setting Rod	Included
Manufacturer	Mitutoyo
