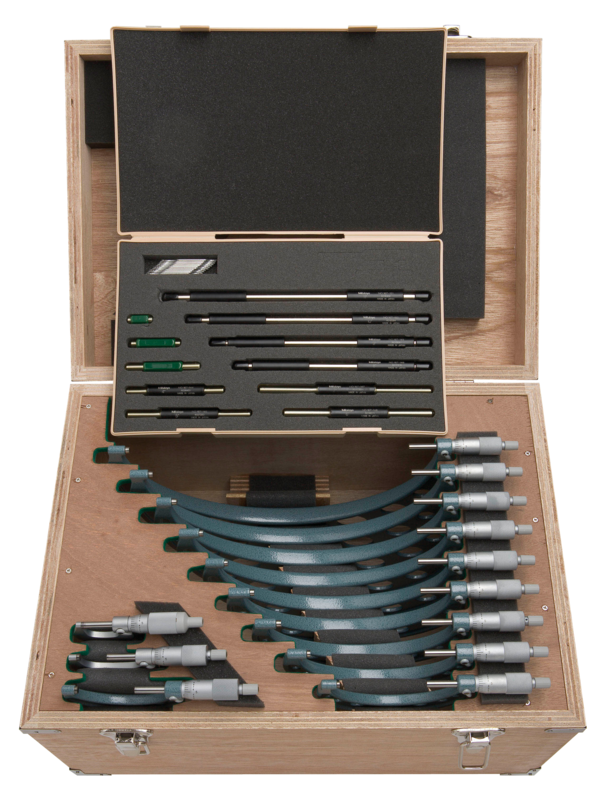

Mitutoyo; Imperial Analogue Outside Micrometer Set
This Mitutoyo set of basic, cost effective, non-digital micrometers incorporating ratchet stops to guarantee repeatable measurement.
- Ratchet stop for constant measuring force
- Set includes:
- 103-177
- 103-178
- 103-179
- 103-180
- 103-181
- 103-182
- 103-183
- 103-184
- 103-185
- 103-186
- 103-187
- 103-188
- Eleven micrometer setting standards
- Graduation : 0.001?
- Accuracy: ± 0.0001?/± 0.00015?/± 0.0002?/± 0.00025?
- Flatness: 0.000024mm
- Measuring Force: 5-10N
- Measuring face: Carbide-tipped
- Measuring Spindle: With spindle lock, 6.35mm diameter
- Scale: Thimble and sleeve satin chrome finish, ø18mm
- Ratchet stop
- Analogue
- Inch
- Code: 103-905-10
No technical information is currently available.
No application information is currently available.
