Mitutoyo Indicating Micrometer with Button Left 510-134

MitutoyoSKU: 510-134
List price: £1,120.00 Offer price: £818.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Calibration Micrometer Setting Rod ≤ 100mm
£10.00 per setting standard
The setting standard is calibrated separately from the micrometer.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Micrometer Stand, Adjustable Angle Type 156-101-10
Part number: 156-101-10  → View product
Mitutoyo Micrometer Stand, 45° Angle Type for Micrometer 0-50mm/0-2" 156-105-10
Part number: 156-105-10  → View product
MMI-10 Micrometer Checker on a stand Metric 10-piece Set 2.5, 5.1, 7.7, 10.3, 12.9, 15.0, 17.6, 20.2,22.8 & 25.0 mm
Part number: MMI-10  → View product
MMI-8 Micrometer Checker on a stand Metric Metric 8-pieces set 3.1, 6.5, 9.7, 12.5, 15.8, 19.0, 21.9 & 25.0 mm
Part number: MMi-8  → View product
Mitutoyo 516-106-10 10 Blocks Micrometer Inspection Gauge Block Set Grade 0
Part number: 516-106-10  → View product
Mitutoyo 04AZA124 Workpiece Stopper 510 style Micrometer 23mm
Part number: 04AZA124  → View product
Mitutoyo 04AZA125 Workpiece Stopper Indicating Micrometer 20.5mm
Part number: 04AZA125  → View product
Mitutoyo 04AZA126 Workpiece Stopper Indicating Micrometer 15mm
Part number: 04AZA126  → View product

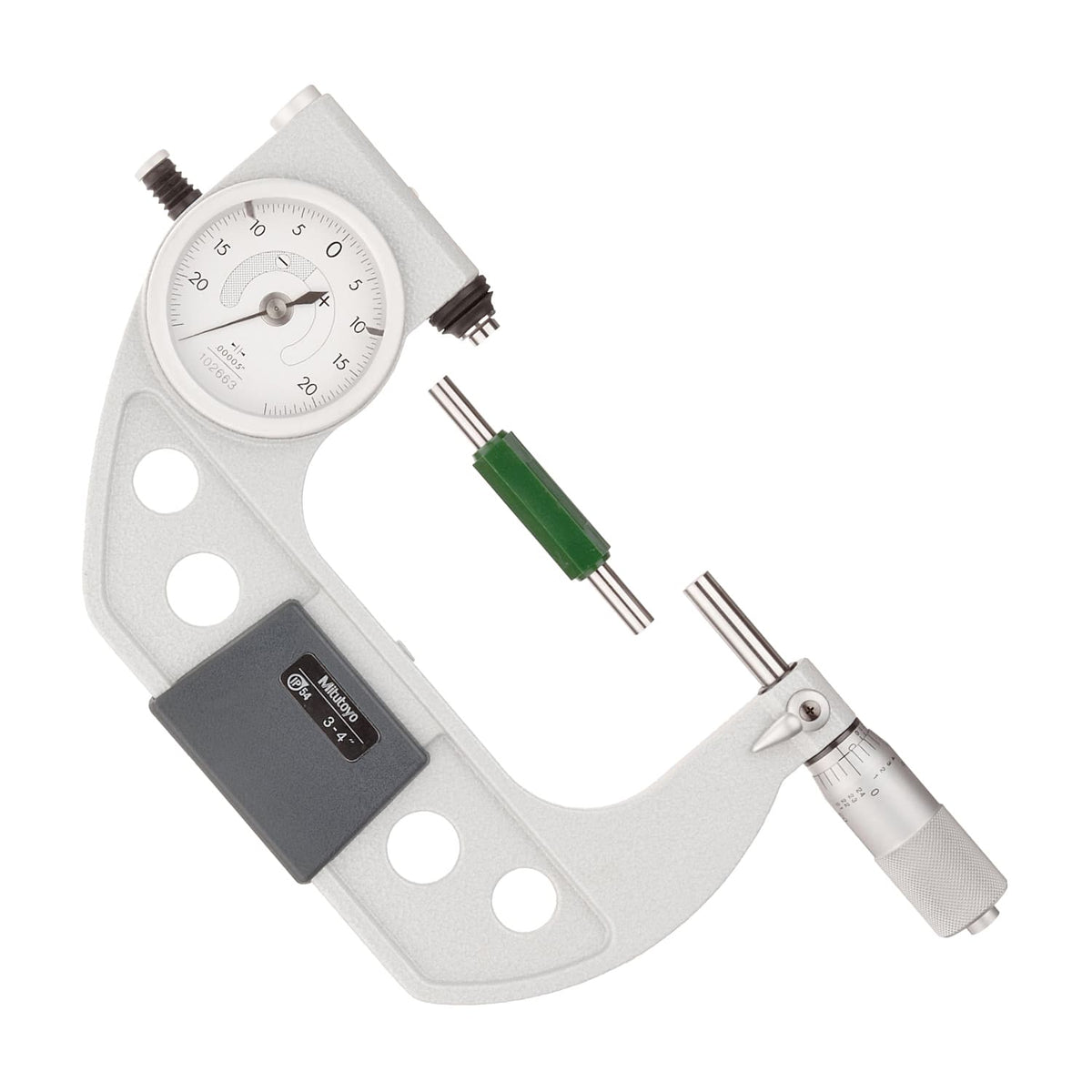

A Mitutoyo non-digital, rapid-retraction-anvil indicating micrometer equipped with a high resolution dial indicator.
Specification
Digital/Analog:
Analog
Delivered:
Including box, spanner, setting standard
Inch-Metric:
Inch
Range:
3 - 4 "
Indicating range:
±0.002"
Anvil retracting stroke:
2 mm
Spindle feed error:
0.00015 inch
Accuracy dial comparator:
1 ?m
Repeatability:
0.00002"
Flatness:
0,3 ?m
Parallelism:
0,00004"
Graduation:
0,0001"
Measuring face:
Carbide-tipped, micro-lap finish, ø8 mm
Measuring spindle:
With spindle lock, ø8 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø21 mm
Measuring force:
5 - 10 N
Operating button:
Left
Delivered:
Including box, key
Mass:
970 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Indicating Micrometer with Button Left 510-134 Click to open the PDF document
