MitutoyoSKU: 141-104
List price: £188.00 Offer price: £137.00 Excluding VAT
A Mitutoyo inside micrometer covering a range of measurement by using an interchangeable measuring rod and spacing collar. The micrometer head is satin-chrome finished.
Specification
Digital/Analog:
Analog
Inch-Metric:
Inch
Range:
1 - 2 "
Graduation:
0.001"
Head adjustment range:
0.25" mm
Scale:
Thimble and sleeve satin chrome finish
Measuring spindle:
Spindle pitch 0,635 mm with spindle lock
Measuring face:
Carbide Measuring Faces
Measuring method:
2-point
Extension collar:
1 (0.25") mm
Interchangeable rod:
2 (0.5") mm
Accessories: inside micrometer (standard in the set) No.:
141-002
Delivered:
Including box, key
Delivered:

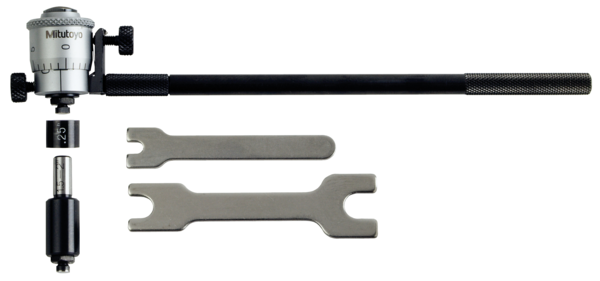

Including box, extension rods (2 pcs), extension collar, micrometer head 141-002
Mass:
60 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Inside Micrometer, Interchangeable Rods 1-2", with 2 Rods, Carbide Measuring Faces 141-104 Click to open the PDF document
