Mitutoyo Inside Micrometer, Interchangeable Rods 2-8", with 3 Rods,Carbide Measuring Faces 141-214
Mitutoyo Inside Micrometer, Interchangeable Rods 2-8", with 3 Rods,Carbide Measuring Faces 141-214
Mitutoyo Inside Micrometer, Interchangeable Rods 2-8", with 3 Rods,Carbide Measuring Faces 141-214
Mitutoyo Inside Micrometer, Interchangeable Rods 2-8", with 3 Rods,Carbide Measuring Faces 141-214
Roll over image to zoom in Click on image to zoom
Mitutoyo Inside Micrometer, Interchangeable Rods 2-8", with 3 Rods,Carbide Measuring Faces 141-214Mitutoyo Inside Micrometer, Interchangeable Rods 2-8", with 3 Rods,Carbide Measuring Faces 141-214Mitutoyo Inside Micrometer, Interchangeable Rods 2-8", with 3 Rods,Carbide Measuring Faces 141-214Mitutoyo Inside Micrometer, Interchangeable Rods 2-8", with 3 Rods,Carbide Measuring Faces 141-214

Mitutoyo Inside Micrometer, Interchangeable Rods 2-8", with 3 Rods,Carbide Measuring Faces 141-214

MitutoyoSKU: 141-214
List price: £427.00 Offer price: £312.00 Excluding VAT
A Mitutoyo inside micrometer covering a range of measurement by using a set of interchangeable measuring rods. The full measuring range is achieved by combining spacing collars with the rods. The micrometer head is satin-chrome finished.
Specification
Digital/Analog:
Analog
Inch-Metric:
Inch
Range:
2 - 8 "
Graduation:
0.001"
Head adjustment range:
0.5" mm
Scale:
Thimble and sleeve satin chrome finish
Measuring spindle:
Spindle pitch 0,635 mm with spindle lock
Measuring face:
Carbide Measuring Faces
Measuring method:
2-point
Extension collar:
1 (0.5") mm
Interchangeable rod:
3 (2") mm
Accessories: inside micrometer (standard in the set) No.:
141-026
Delivered:
Including box, key
Delivered:

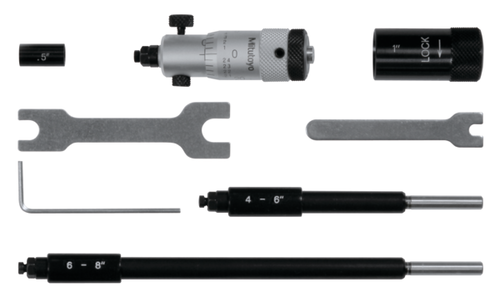

Including box, extension rods (3 pcs), extension collar, micrometer head 141-026
Mass:
125 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Inside Micrometer, Interchangeable Rods 2-8", with 3 Rods,Carbide Measuring Faces 141-214 Click to open the PDF document
