Mitutoyo Inside Micrometer, Interchangeable Rods 200-500mm, with 3 Rods, Hardened Face 141-117
Mitutoyo Inside Micrometer, Interchangeable Rods 200-500mm, with 3 Rods, Hardened Face 141-117
Mitutoyo Inside Micrometer, Interchangeable Rods 200-500mm, with 3 Rods, Hardened Face 141-117
Mitutoyo Inside Micrometer, Interchangeable Rods 200-500mm, with 3 Rods, Hardened Face 141-117
Mitutoyo Inside Micrometer, Interchangeable Rods 200-500mm, with 3 Rods, Hardened Face 141-117
Roll over image to zoom in Click on image to zoom
Mitutoyo Inside Micrometer, Interchangeable Rods 200-500mm, with 3 Rods, Hardened Face 141-117Mitutoyo Inside Micrometer, Interchangeable Rods 200-500mm, with 3 Rods, Hardened Face 141-117Mitutoyo Inside Micrometer, Interchangeable Rods 200-500mm, with 3 Rods, Hardened Face 141-117Mitutoyo Inside Micrometer, Interchangeable Rods 200-500mm, with 3 Rods, Hardened Face 141-117Mitutoyo Inside Micrometer, Interchangeable Rods 200-500mm, with 3 Rods, Hardened Face 141-117

Mitutoyo Inside Micrometer, Interchangeable Rods 200-500mm, with 3 Rods, Hardened Face 141-117

MitutoyoSKU: 141-117
List price: £360.00 Offer price: £263.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item
This an interchangeable rod type inside micrometer that offers you the following benefits:
  • Interchangeable measuring rods and spacers achieve the full specified measuring range.
  • Each interchangeable rod is marked with its measuring range.
  • An extension handle to help you measure deep bores is included in sets up to 300 mm range.
Specification
Digital/Analog:
Analog
Inch-Metric:
Metric
Range:
200 - 500 mm
Measuring span:
25 mm
Graduation:
0.01 mm
Scale:
Thimble and sleeve satin chrome finish
Measuring spindle:
Spindle pitch 0,5 mm with spindle lock
Measuring face:
Hardened steel
Measuring method:
2-point
Extension collar:
2 (25/50 mm) mm
Interchangeable rod:
3 (300, 400, 500 mm) mm
Accessories: inside micrometer (standard in the set) No.:
141-009
Delivered:
Including box, key
Delivered:

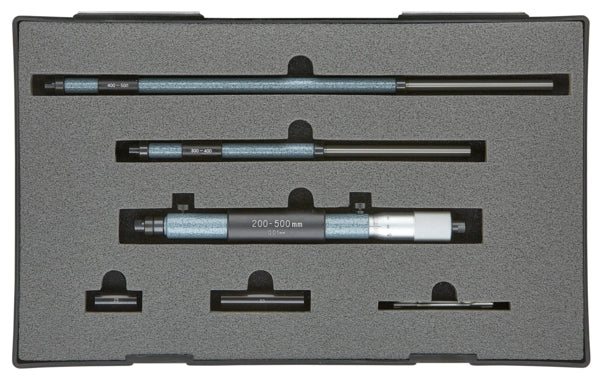

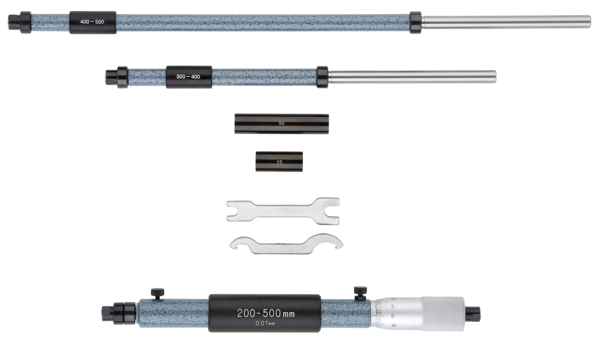

Including box, extension rods (3 pcs), extension collars (2 pcs.), micrometer head 141-009
Mass:
520 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Inside Micrometer, Interchangeable Rods 200-500mm, with 3 Rods, Hardened Face 141-117 Click to open the PDF document
