Mitutoyo Inside Micrometer, Interchangeable Rods 25-50mm, with 2 Rods, Hardened Face 141-101

MitutoyoSKU: 141-101
List price: £150.00 Offer price: £110.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

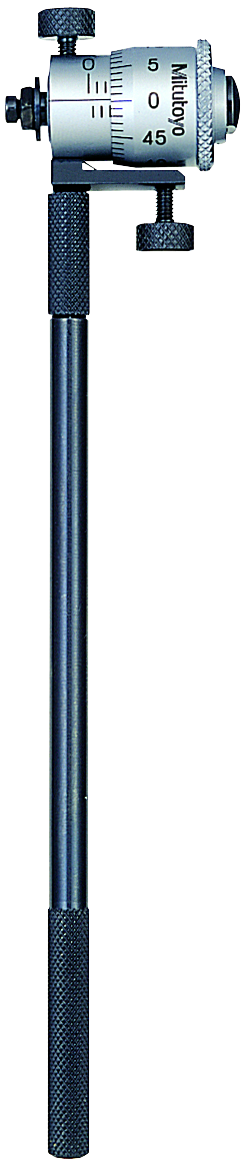

A Mitutoyo inside micrometer covering a range of measurement by using an interchangeable measuring rod with a spacing collar. The micrometer head is satin-chrome finished.

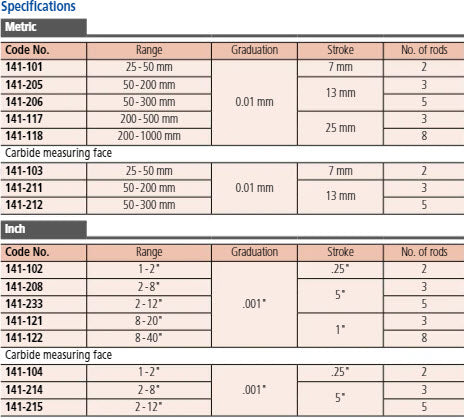

Specification
Digital/Analog:
Analog
Inch-Metric:
Metric
Range:
25 - 50 mm
Measuring span:
7 mm
Graduation:
0.01 mm
Scale:
Thimble and sleeve satin chrome finish
Measuring spindle:
Spindle pitch 0,5 mm with spindle lock
Measuring face:
Hardened steel
Measuring method:
2-point
Extension collar:
1 (6 mm) mm
Interchangeable rod:
2 (38, 50 mm) mm
Accessories: inside micrometer (standard in the set) No.:
141-001
Delivered:
Including box, key
Delivered:

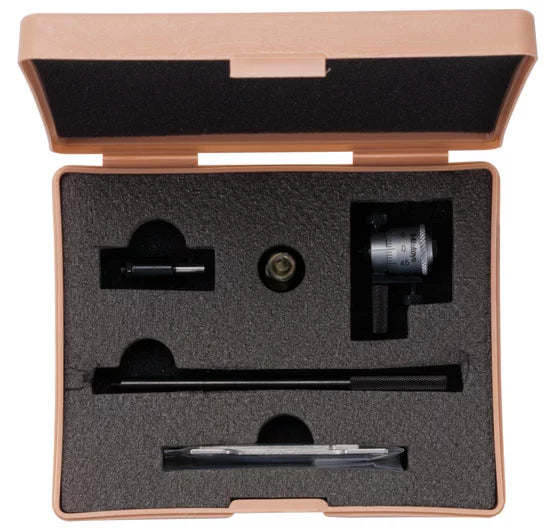

Including box, extension rods (2 pcs), extension collar, micrometer head 141-001
Mass:
60 g

No technical information is currently available.

No application information is currently available.
