Mitutoyo Inside Micrometer, Interchangeable Rods 50-300mm, with 5 Rods, Hardened Face 141-206

MitutoyoSKU: 141-206
List price: £298.00 Offer price: £218.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

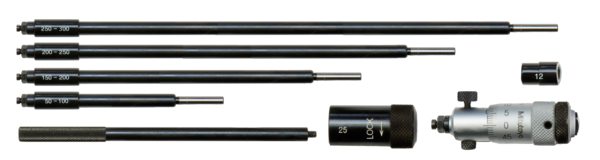

A Mitutoyo inside micrometer covering a range of measurement by using a set of interchangeable measuring rods. The full measuring range is achieved by combining spacing collars with the rods. The micrometer head is satin-chrome finished.
Specification
Digital/Analog:
Analog
Inch-Metric:
Metric
Range:
50 - 300 mm
Measuring span:
13 mm
Graduation:
0.01 mm
Scale:
Thimble and sleeve satin chrome finish
Measuring spindle:
Spindle pitch 0,5 mm with spindle lock
Measuring face:
Hardened steel
Measuring method:
2-point
Extension collar:
1 (12 mm) mm
Interchangeable rod:
5 (100, 150, 200, 250, 300 mm) mm
Accessories: inside micrometer (standard in the set) No.:
141-025
Delivered:
Including box, key
Delivered:
Including box, extension rods (5 pcs), extension collar, micrometer head 141-025
Mass:
275 g

No technical information is currently available.

No application information is currently available.
