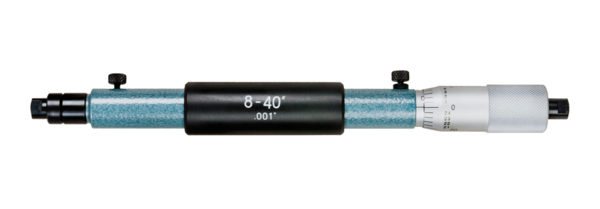

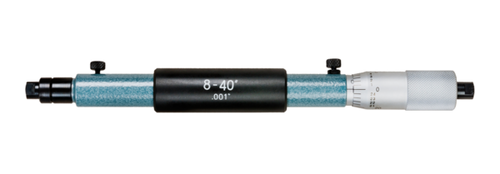

Mitutoyo Inside Micrometer, Interchangeable Rods 8-40", with 3 Rods, Hardened Face 141-122
Mitutoyo Inside Micrometer, Interchangeable Rods 8-40", with 3 Rods, Hardened Face 141-122
Mitutoyo Inside Micrometer, Interchangeable Rods 8-40", with 3 Rods, Hardened Face 141-122
Mitutoyo Inside Micrometer, Interchangeable Rods 8-40", with 3 Rods, Hardened Face 141-122
Roll over image to zoom in Click on image to zoom
Mitutoyo Inside Micrometer, Interchangeable Rods 8-40", with 3 Rods, Hardened Face 141-122Mitutoyo Inside Micrometer, Interchangeable Rods 8-40", with 3 Rods, Hardened Face 141-122Mitutoyo Inside Micrometer, Interchangeable Rods 8-40", with 3 Rods, Hardened Face 141-122Mitutoyo Inside Micrometer, Interchangeable Rods 8-40", with 3 Rods, Hardened Face 141-122

Mitutoyo Inside Micrometer, Interchangeable Rods 8-40", with 3 Rods, Hardened Face 141-122

MitutoyoSKU: 141-122
List price: £532.00 Offer price: £388.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item
A Mitutoyo inside micrometer covering a range of measurement by using a set of interchangeable measuring rods. The full measuring range is achieved by combining spacing collars with the rods. The micrometer head is satin-chrome finished.
Specification
Digital/Analog:
Analog
Inch-Metric:
Inch
Range:
8 - 40 "
Graduation:
0.001"
Head adjustment range:
1" mm
Scale:
Thimble and sleeve satin chrome finish
Measuring spindle:
Spindle pitch 0,635 mm with spindle lock
Measuring face:
Hardened steel
Measuring method:
2-point
Extension collar:
2 (1" / 2") mm
Interchangeable rod:
8 (4") mm
Accessories: inside micrometer (standard in the set) No.:
141-010
Delivered:
Including box, key
Delivered:
Including box, extension rods (8 pcs), extension collars (2 pcs.), micrometer head 141-010
Mass:
1940 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Inside Micrometer, Interchangeable Rods 8-40", with 3 Rods, Hardened Face 141-122 Click to open the PDF document
