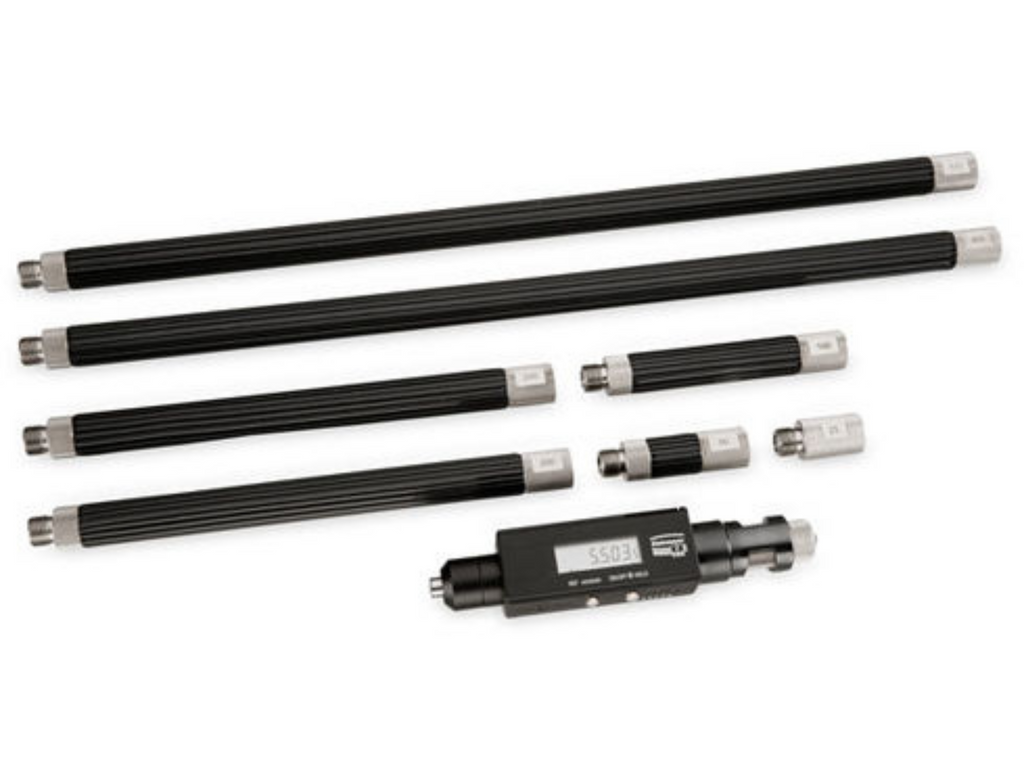

Steinmeyer Modular internal micrometer 0626 with digital display, defined measuring force and expandable measuring range of up to 5000mm.
Description
- Measuring Head 150-175mm
- Extension Elements 25,2x50,100,2x200,400,4x1000mm
- Error limits according to DIN 863
- High accuracy due to non-rotating thrust shaft
- Data interface for digital data transfer
- Function hold measured value
- Input and saving of PRESET-values
- Setting of tolerance values
- Min- / Max-value memory, zero point setting
- SET: Metric / inch conversion (mm / inch)
- Constant measuring force across spring
Technical Data
- Spindle thread pitch 1,0 mm
- Measuring faces diameter 8 mm
- LCD display: 6 mm
- Measuring range 25 mm / 1 inch
- Switchable reading 0,01 mm / 0,001 mm; 0,0005 inch / 0,00005 inch
- Measuring force across spring ~ 7 N
