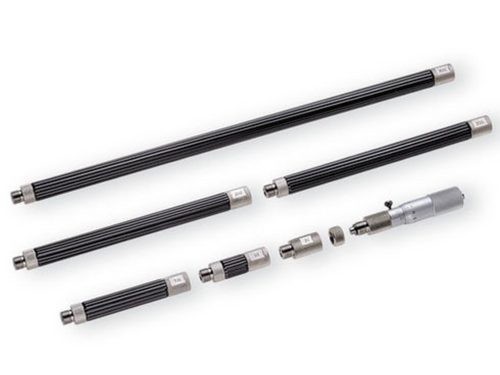

Steinmeyer Inside (Stick) Micrometer 50-65mm (15mm Range)(Measuring Head) 76938530120

Steinmeyer Inside Micrometer 561 (modular)

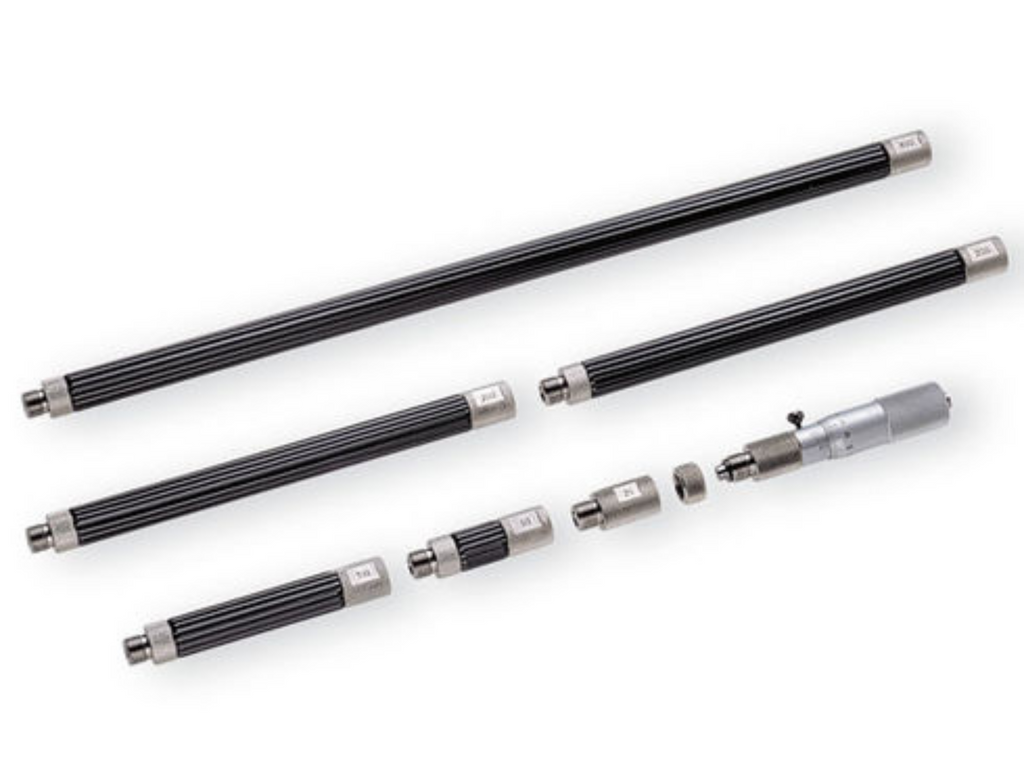

Internal measuring gauge 561, modular, with gauge block extensions up to 6100mm.

Description

• Measuring Head 50-65mm (Extension sets must be ordered separately)

View Data Sheet

• for precise measuring of inner dimensions up to 2100 mm
• can be used for different measuring areas due to screw-on gauge block extensions
• Precise measurements with lapped measuring faces
• Fixing the spindle in the desired place possible with locking lever
• Easy to handle with CFK-extensions
• Less wear of measuring faces due to carbide measuring faces

Technical Data

• Graduation 0,01 mm
• Spindle thread pitch 0,5 mm
• Measuring range 15 / 25 mm
• Thimble diameter 19 mm

All images are for representation only.
