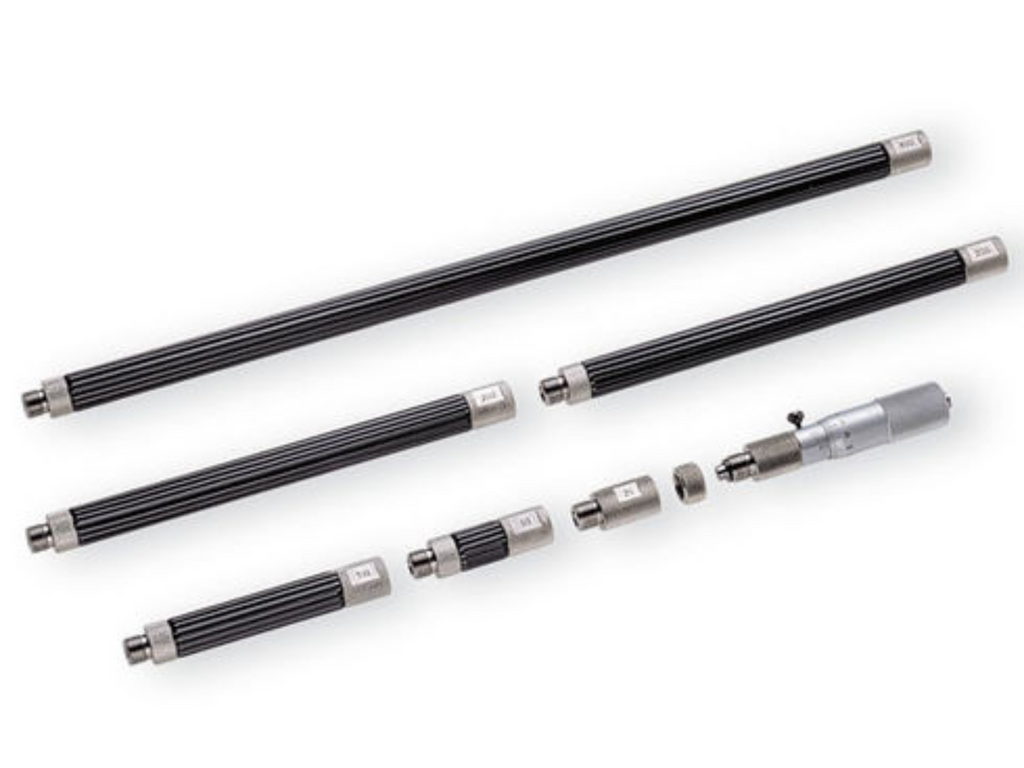

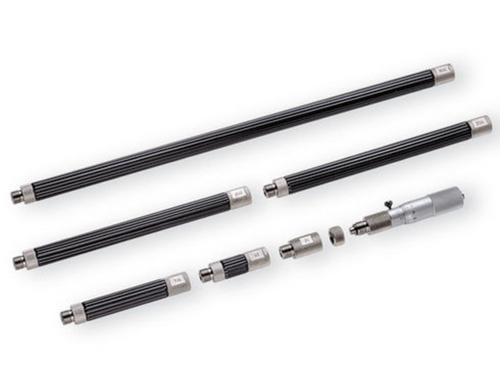

Steinmeyer Inside Micrometer 561 (modular)
Internal measuring gauge 561, modular, with gauge block extensions up to 6100mm.
Description
- Measuring Head 100-125mm (Extension sets must be ordered separately)
- Extension Elements 25,50,100,200mm
- for precise measuring of inner dimensions up to 2100 mm
- can be used for different measuring areas due to screw-on gauge block extensions
- Precise measurements with lapped measuring faces
- Fixing the spindle in the desired place possible with locking lever
- Easy to handle with CFK-extensions
- Less wear of measuring faces due to carbide measuring faces
Technical Data
- Graduation 0,01 mm
- Spindle thread pitch 0,5 mm
- Measuring range 15 / 25 mm
- Thimble diameter 19 mm
