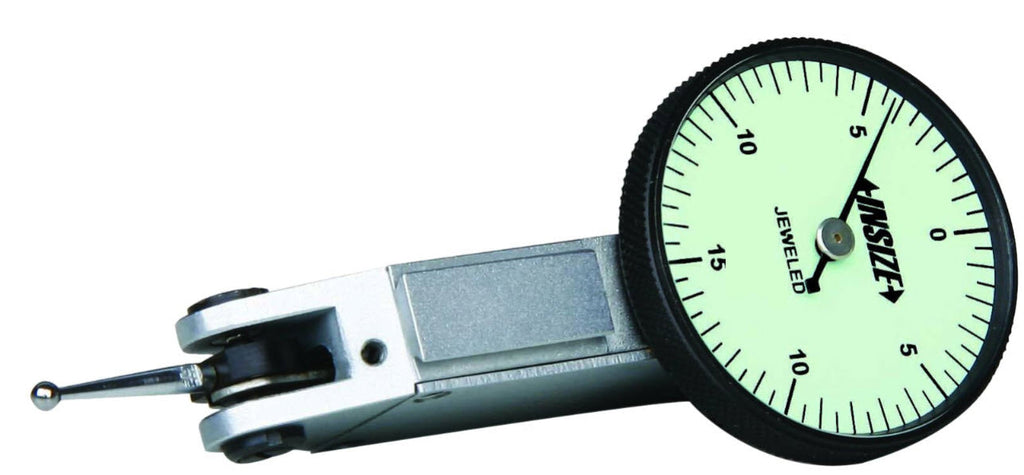

INSIZE 2383-08 Long Stylus Lever Indicator .01mm x .8mm Face diameter 37mm stylus 46.4mm

Roll over image to zoom in Click on image to zoom

INSIZE 2383-08 Long Stylus Lever Indicator .01mm x .8mm Face diameter 37mm stylus 46.4mm

Name: INSIZE 2383-08 Long Stylus Lever Indicator .01mm x .8mm Face diameter 37mm stylus 46.4mm
Brand: Insize
SKU: 2383-08
Price: 69.7 GBP
Availability: InStock

InsizeSKU: 2383-08

All prices exclude VAT, which will be added at checkout.

Price:

£69.70

Quantity:

INSIZE 2383-08 Long Stylus Lever Indicator .01mm x .8mm Face diameter 37mm stylus 46.4mm

The 2383 Dial Test Indicator with long styli for accurate measurements of surface distortion or run out. Comes complete with carbide contact point, two way measuring direction and dovetail clamping plus 2 extra clamps extensions. Indicator Sizes range from 0-0.8mm in graduations of 0.01mm.

Graduation 0.01mm.
Carbide contact point.
Jeweled bearing.
2 measuring directions.
Anti magnetic body.
Supplied with 2 clamps.

Specification

Category	Measuring
Sub Category	Indicators
Sub Category 2	Dial Test Indicators
Range	0.8mm
Dial Reading	0-40-0
Hysteresis	±0.003mm
Accuracy	±0.013mm
Graduation	0.01mm
Type	Long Styli

Product Information
Part Number	2383-08
Thread Type	M2.5
Length	16-26-36-46mm
