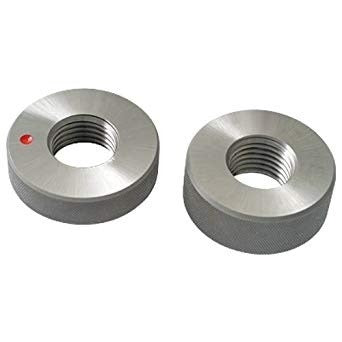

Insize 4120-18N No go ring gauge M18 x 2 No-Go Ring Gauge Class 6g tolerance. Thread Standard: ISO1502

NO-GO gauges are designed to check the minimum metal conditions i.e. Maximum hole limit and Minimum shaft limit.This No-Go thread gauge is marked in red. This thread NO-GO ring gauge must not screw into the part by hand by more than two threads. The reference temperature for parts and gauge is 20°C. It is made from high-quality raw material. This gauge is mostly used as an inspection tool.The thread NO-GO ring gauge must not screw into the part by hand more than two threads (without using excessive force). If the ring gauge can be screwed into the thread by more than two threads, the thread does not meet the desired requirements (=scrap). The no-go thread gauges are marked in red. The reference temperature for parts and gauges is 20° Celsius.

• Class 6g tolerance.
• Thread Standard: ISO1502.
