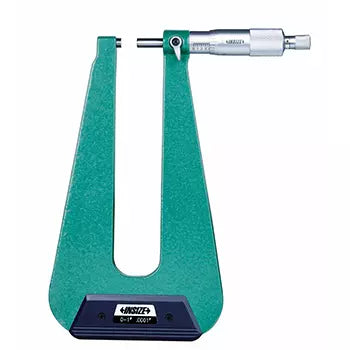

3239-13 Insize Sheet Metal Micrometer: 0-1?
The Insize 3239-13 Sheet Metal Micrometer has the following specifications:
- Range: 0-1?
- Graduations: .0001?
- Accuracy: .00028?
- Throat Depth: 6?
- Anvil Type: A Flat/Flat
Features:
- Deep frame suitable for sheet metal,paper and plastic
- Graduation .0001?
-

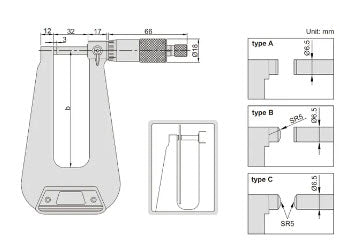

- Type A: Flat Anvil / Flat Spindle
- Type B: .197? Radius Ball Anvil / Flat Spindle
- Type C: .197? Radius Ball Anvil / .197? Radius Ball Spindle
Ideal for measurements which are inaccessible with standard micrometer
-Anvils extend 25mm from centre line of the micrometer
-Digimatic version available
-Tungsten Carbide tipped measuring faces
-Clear graduations on satin chrome finish
Insize Caliper Type micrometer 3238-25 Range 0-25mm x .01mm -
Product image may vary
