InspecSKU: 306-01-010
List price: £200.00 Offer price: £150.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Add your Gauge ID, asset number or company name.

Recommended Alternative

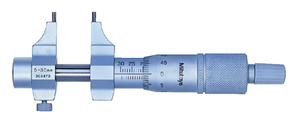

Mitutoyo Caliper Jaw Inside Micrometer 5-30mm 145-185
Mitutoyo Caliper Jaw Inside Micrometer 5-30mm 145-185 SKU: 145-185 View recommended alternative
The Caliper Jaw Inside Micrometer offers you the following benefits:
  • Carbide measuring faces
  • A setting standard (optional) is needed to accurately set the micrometer to the reference point.
Specification
Digital/Analog:
Analog
Inch-Metric:
Metric
Range:
5 - 30 mm & 30-55mm
Graduation:
0,01 mm
Max.
Permissible Error
J MPE:
±5 µm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring spindle:
With spindle lock, spindle pitch 0,5 mm
Measuring face:
Carbide tipped
Measuring force:
1-6 N
Delivered:
Including box, key
Delivered:
Including box, spanner, setting standard is not included
Mass:
130 g

No technical information is currently available.

No application information is currently available.

No videos or documents are currently available.
