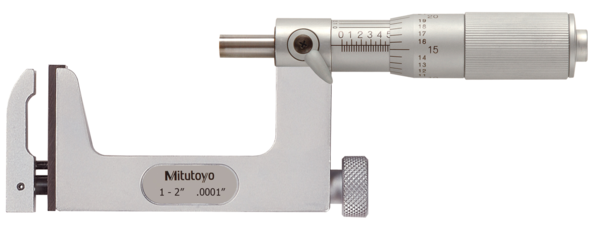

Interchangeable Anvil Micrometer 1-2" 117-108 Uni Mike

MitutoyoSKU: 117-108

List price: Regular price£273.00 Offer price: Sale price£191.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Calibration Micrometer Setting Rod ≤ 100mm
£10.00 per setting standard
The setting standard is calibrated separately from the micrometer.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Please check before engraving: New gauges engraved to your requirements cannot be returned for credit if ordered incorrectly or no longer required. Please confirm the gauge specification and marking details before ordering. This does not affect your rights if the goods are faulty or incorrectly supplied.

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Micrometer Stand, Adjustable Angle Type 156-101-10
Part number: 156-101-10  → View product
Mitutoyo Micrometer Stand, 45° Angle Type for Micrometer 0-50mm/0-2" 156-105-10
Part number: 156-105-10  → View product
Mitutoyo 516-106-10 10 Blocks Micrometer Inspection Gauge Block Set Grade 0
Part number: 516-106-10  → View product
MMI-10 Micrometer Checker Metric 10-piece Set 2.5, 5.1, 7.7, 10.3, 12.9, 15.0, 17.6, 20.2,22.8 & 25.0 mm
Part number: MMI-10  → View product
MMI-8 Micrometer Checker Metric Metric 8-pieces set 3.1, 6.5, 9.7, 12.5, 15.8, 19.0, 21.9 & 25.0 mm
Part number: MMi-8  → View product
Mitutoyo 201216 Flat Anvil
Part number: 201379  → View product
Part number: 201216  → View product
Mitutoyo 201217 Cylindrical Anvil 3mm Micrometer Series 117/317
Part number: 201217  → View product
Mitutoyo 201379 Cylindrical Anvil 5mm Micrometer Series 117/317
Part number: 201379  → View product
MITUTOYO 201218 Interchangeable V-anvil (117)
Part number: 201218  → View product
Mitutoyo 950758 Round Base for Series 117/317 for 0-25mm
Part number: 950758  → View product

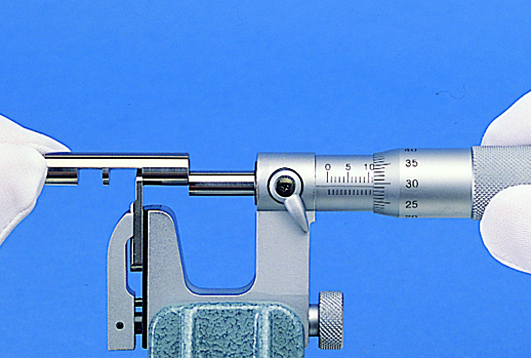

A Mitutoyo non-digital micrometer that accepts easily interchangeable anvils to enable a wide variety of measurement, such as tubing thickness, shoulder-edge distance and rivet height. A friction thimble guarantees repeatable measurement.
Digital/Analog:
Analog
Delivered:
Including box, spanner, setting standard, flat anvil 201216, rod anvil 201379
Inch-Metric:
Inch
Range:
1 - 2 "
Graduation:
0,0001"
Spindle feed error:
0.00015 inch
Flatness:
0,000024" (spindle), 0,00008" (anvil)
Parallelism:
0,00012"
Measuring face:
Carbide-tipped micro-lap finish spindle and hardened steel anvil
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Content of Set:
Anvils 201379, 201216
Delivered:
Including box, setting standard (from 25 mm upward), key, anvils
Mass:
320 g
