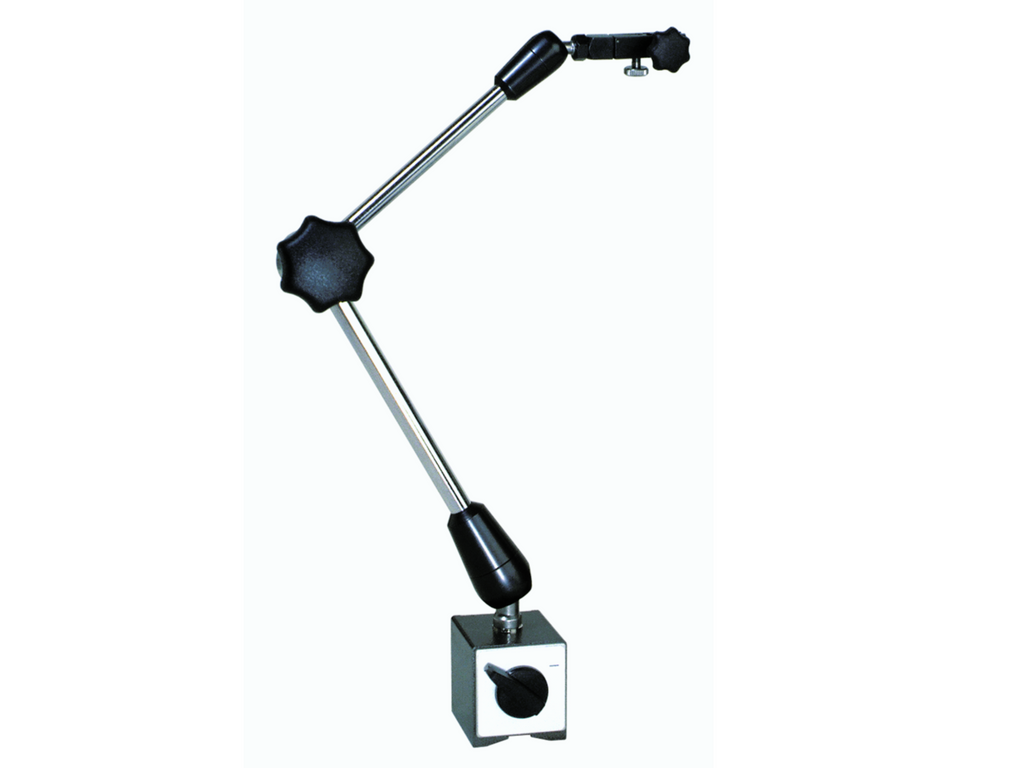

Mitutoyo Jointed Magnetic Stand 400mm Working Radius 011360
With a mechanical locking system and fine adjustment, allows a dial indicator to be fixed in any position.

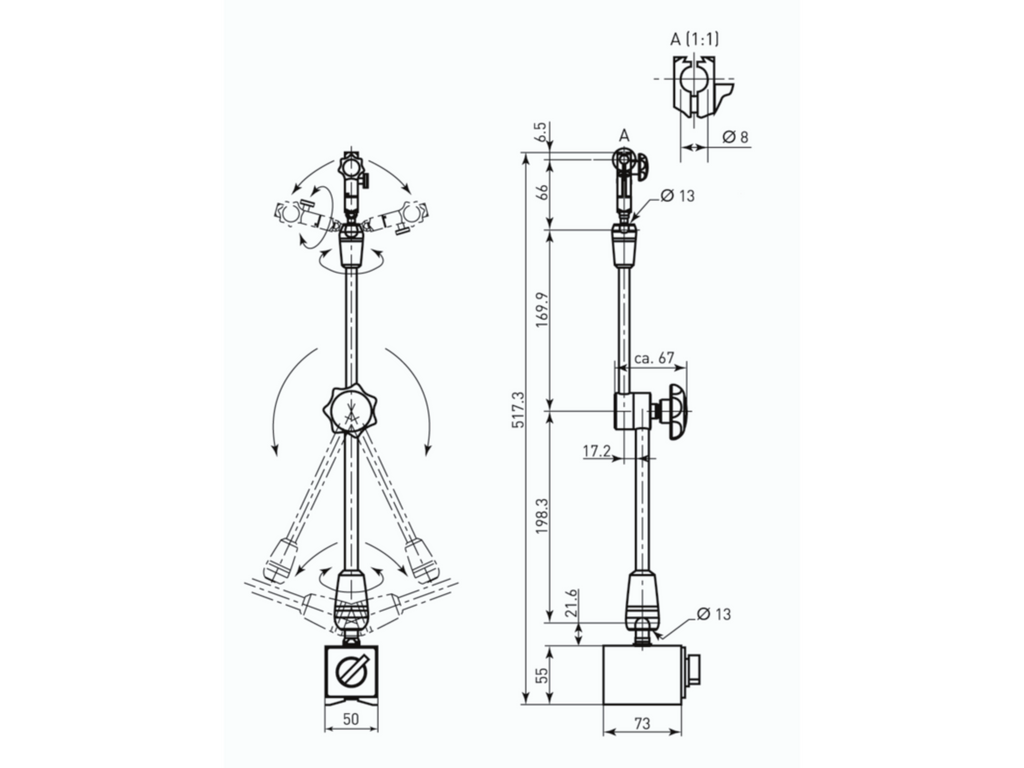

Specification
Clamping device: magnetic
Magnetic force (vertical): 900 N
Magnetic stand size (LXWXH): 73 x 50 x 55 mm
Total height: 517 mm
Stem hole ø: 8 mm dovetail
Working radius: 400 mm
Thread Arm/Base: M8 x 1.25
Mass: 2.1 kg
All images are for representation only.
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
