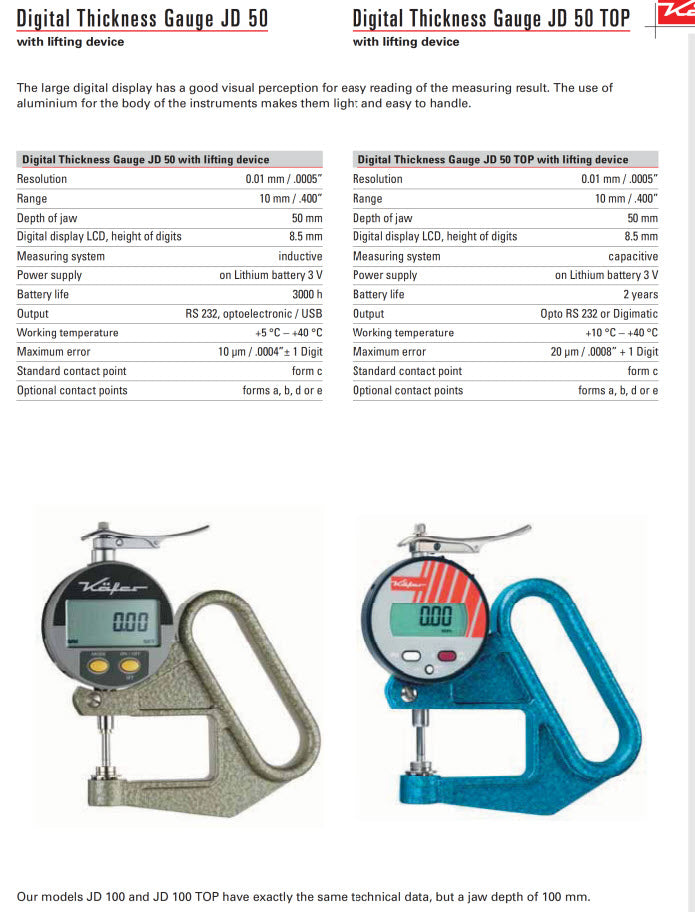

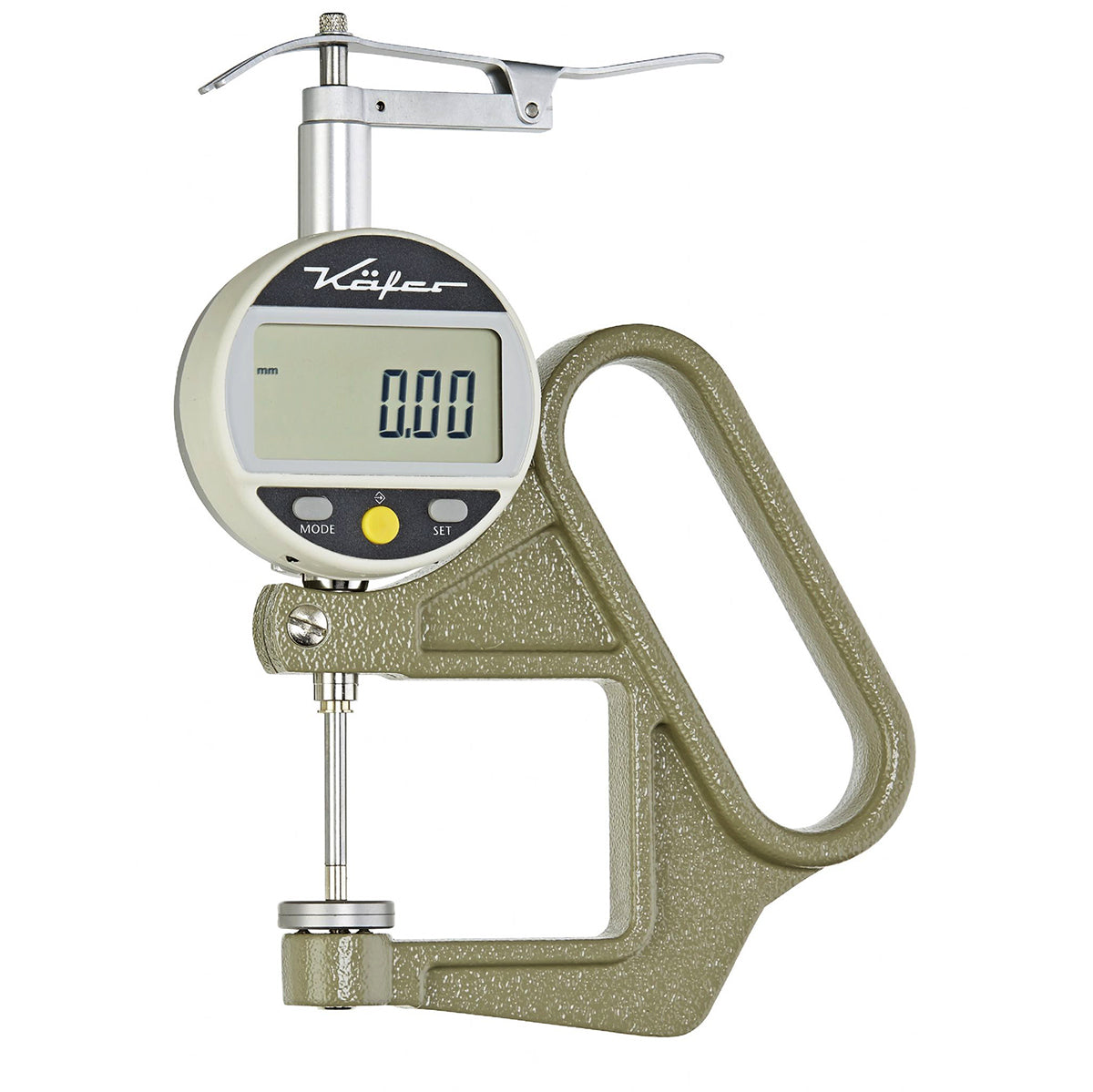

The use of a frame with large frame height together with a Digital Dial Indicator with 25 mm measuring range and a reinforced lifting device attached to the rear results in a Thickness Gauge which combines the advantages of easy handling and large measuring range suitable for various applications.
Thickness Gauges are used for measuring the thickness of a very wide range of materials such as leather, paperboard, paper, felt, rubber, glass, sheet, metal, films, plywood and plastics.
The shape of the feelers should be adapted to the material being measured.
This digital thickness gauge is supplied with contact points type C as standard. It can be supplied with other forms of contact points (a,b,d, or e) at no extra cost
-
Maximum Error: 20 µm
Standard Force (+/- 20%): 0.7 N**Standard Contact Point Type C = 10 mm Ø FLAT (or of choice A, B, D or E. Please confirm with order)
- Range: 0-25mm (0-1?)
- Resolution: 0.01 mm (0.0005?)
- Accuracy: 0.01mm (0.0004?) ± 1 Digit
- Jaw depth: 50mm
- Measuring system: Inductive
- Data output: RS 232, optoelectronic / USB
- Working temperature: +5 °C – +40 °C
- Standard contact point: form c
- Optional contact points: forms a, b, d or e
- Code: JD 50/25
