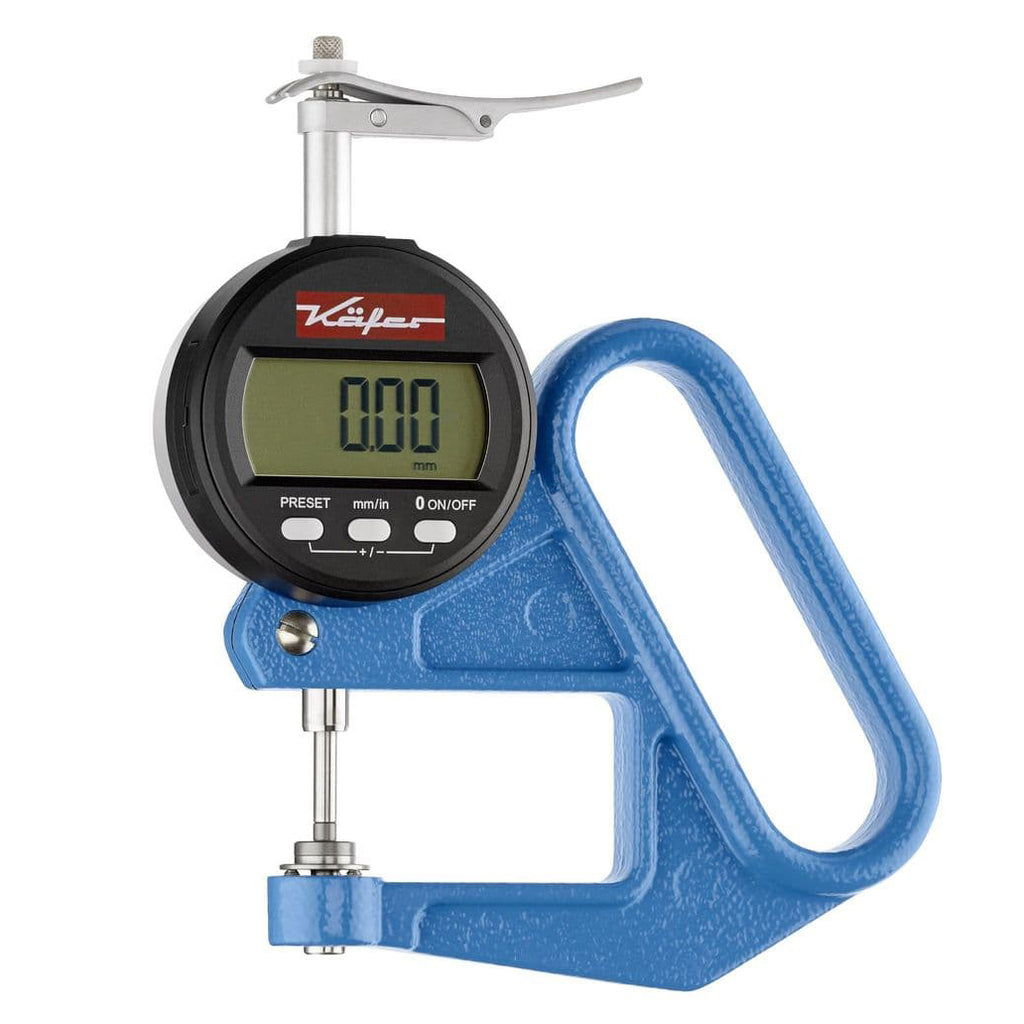

The use of a frame with large frame height together with a Digital Dial Indicator with 25 mm measuring range and a reinforced lifting device attached to the rear results in a Thickness Gauge which combines the advantages of easy handling and large measuring range suitable for various applications.
Thickness Gauges are used for measuring the thickness of a very wide range of materials such as leather, paperboard, paper, felt, rubber, glass, sheet, metal, films, plywood and plastics.
The shape of the feelers should be adapted to the material being measured.
This digital thickness gauge offers the following features:
- Contact points type C as standard. Can be supplied with other forms of contact points (a,b,d, or e) at no extra cost
- A lifting device as standard with contact force of 0.6N ± 20%
- The large digital display has a good visual perception for easy reading of the measuring result
- The use of aluminium for the body of the instruments makes them light and easy to handle
- Range: 0-12.5mm (0-5?)
- Resolution: 0.01 mm (0.0005?)
- Accuracy: 0.02mm (0.0007?)
- Depth of Jaw: 100mm
- Data output: RS 232, USB or Digimatic
- Working temperature: +10 °C – +40 °C
- Contact force: 0.6N ± 20%
- Standard contact point: form c
- Optional contact points: forms a, b, d or e
- Code JD 100 TOP
