Resolution: 0.01 mm / 0.001 inch Measuring range: 0 – 12.50 mm / 0.500 inch Depth of jaw 300 mm / 12" Feeler shape: A/B/C/D/E (select one) Display: LCD 6 digit, 8.5 mm high Measuring system: Capacitiv (Sylvac) Temperature range: 10 – 45 °C Battery: 3 V Lithium, CR 2032 Data output: USB, RS 232 Weight, net (gross): Approx. 1000 g (1400 g) -
Thickness Gauges are used for measuring the thickness of a very wide range of materials such as leather, paperboard, paper, felt, rubber, glass, sheet, metal, films, plywood and plastics.
The shape of the feelers should be adapted to the material being measured.

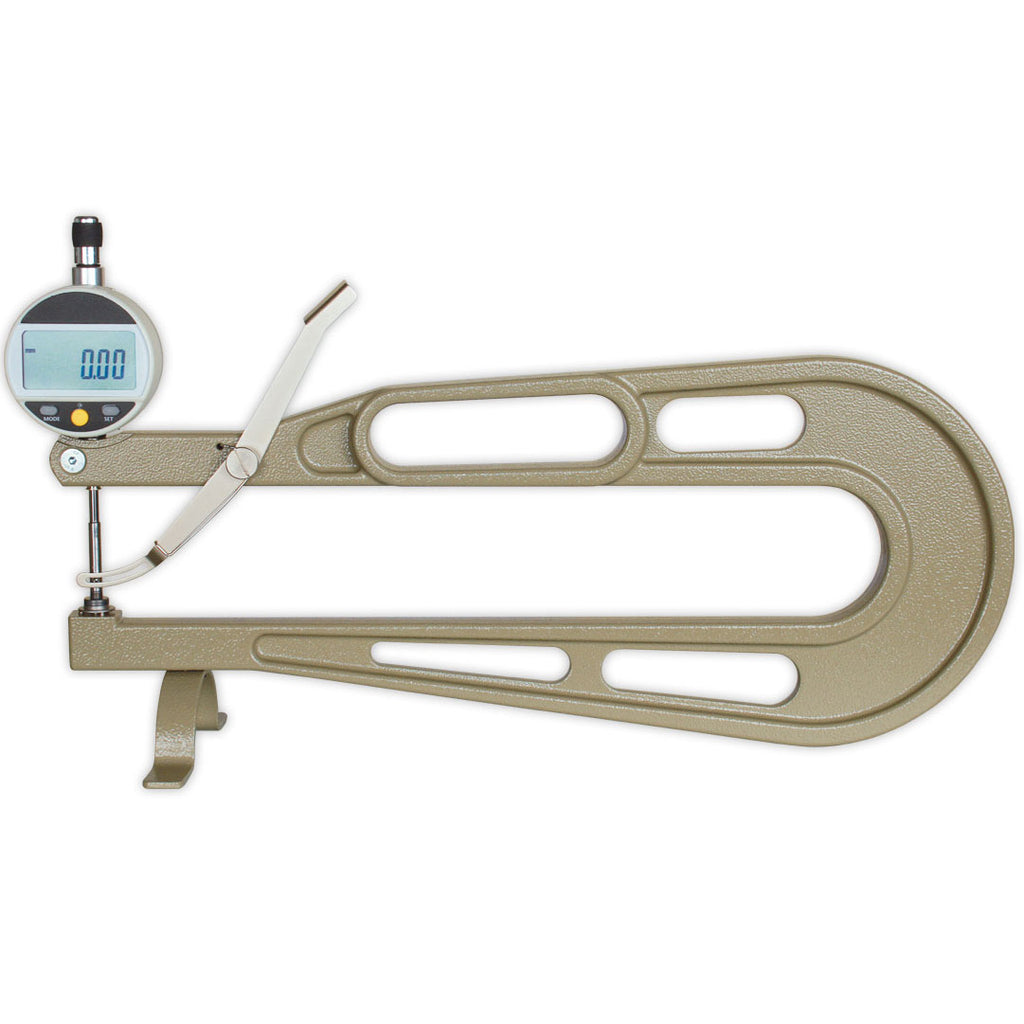

This digital thickness gauge offers the following features:
- Contact points type C as standard. Can be supplied with other forms of contact points (a,b,d, or e) at no extra cost
- A lifting device as standard with contact force of 0.7N ± 20%
- The large digital display has a good visual perception for easy reading of the measuring result
- The use of aluminium for the body of the instruments makes them light and easy to handle
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
