Thickness Gauges are used for measuring the thickness of a very wide range of materials such as leather, paperboard, paper, felt, rubber, glass, sheet, metal, films, plywood and plastics.
The shape of the feelers should be adapted to the material being measured.
This digital thickness gauge offers the following features:
- Contact points type C as standard. Can be supplied with other forms of contact points (a,b,d, or e) at no extra cost
- A lifting device as standard with contact force of 0.7N ± 20%
- The large digital display has a good visual perception for easy reading of the measuring result
- The use of aluminium for the body of the instruments makes them light and easy to handle
-

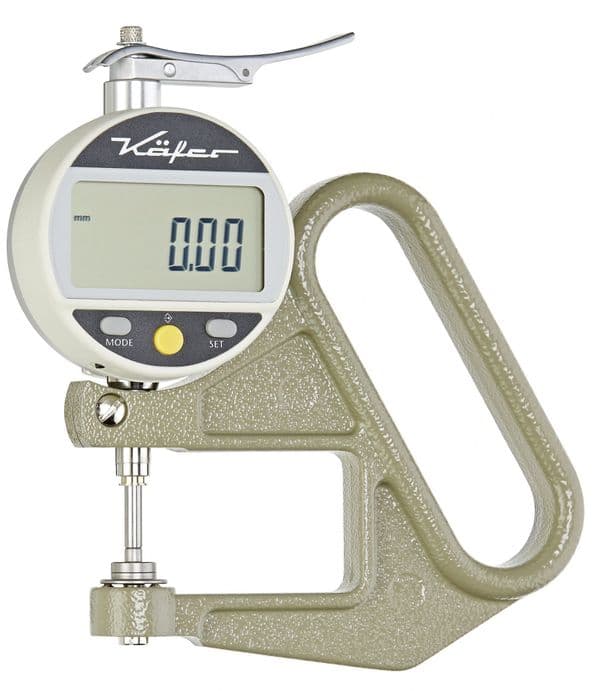

KÄFER Digital Thickness Gauge JD 50 with Lifting Device
KAFER Ref: 20048
Reading: 0.01 mm
Range: 12.5 mm
Depth of Jaw: 50 mm
Output: RS 232 or USB
Maximum Error: 20 µm
Standard Force (+/- 20%): 0.7 N**Standard Contact Point Type C = 10 mm Ø FLAT (or of choice A, B, D or E. Please confirm with order)
