Measuring Range: 0 - 1 inch
Jaw Depth: 15.75 inch

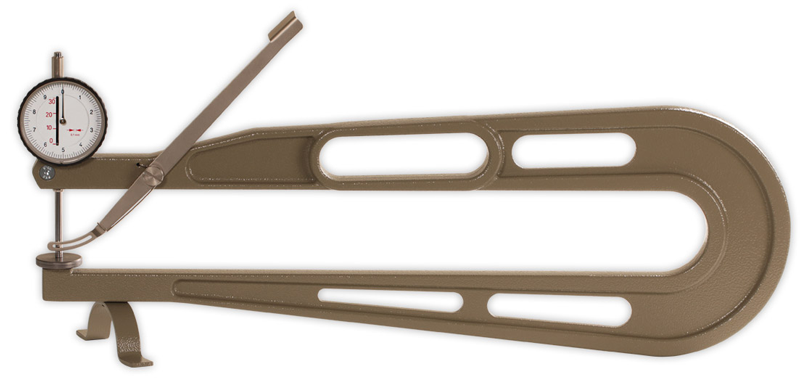

Resolution: 0 0.010 inchThe K-400 thickness gauge features an easy to read analogue display along with the high accuracy.
The K-400 model is available with 5 different feelers, which can be found below. Measurement is done by a spring force. Opening by lifting device (lever) - self closing.
Standard spring Force is 1.8N, however a Reduced Force Version offering 0.9N as well as a Increased Force Version offering 2.5N is available.
| Range | 1.00" (KZ models) |
| Resolution | 0.010" (KZ models) |
| Range per revolution | 0.4" (10 mm) |
| Bezel-Ø | 2.3" (58 mm) |
| Depth of Jaw | 15.75" (400 mm) |
| Feeler Type | Select Feeler "A", "B", "C", "D" or "E" |
| Test Pressure | 1.8N Standard (optional 0.9N and 2.5N) |
| Weight | 3 Lbs (1.4 Kg) |
