KERN® Coating thickness gauge - FE/NFE extern TE 1250-0.1FN, Max (µm) 100 µm; 1250 µm, readout (µm) 0,1 µm; 1 µm

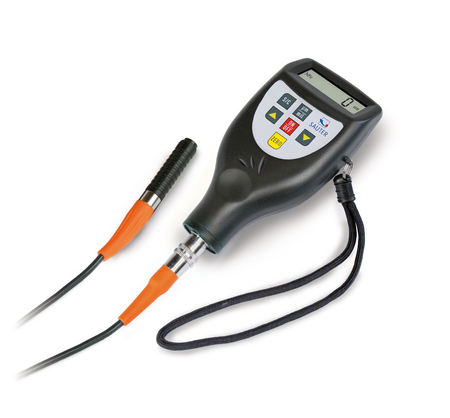

• External sensor for difficult-to-access measurements
• Data interface RS-232, standard
• Base plate and calibration foils included

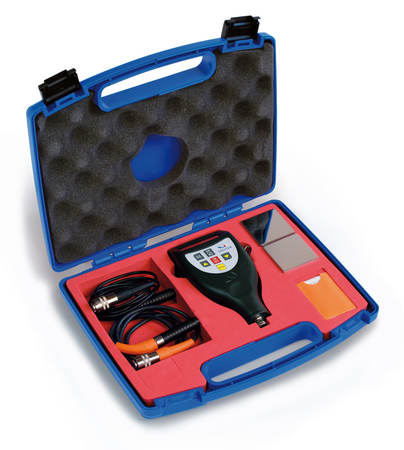

• Delivered in a robust carrying case
• Offset-Accur: This function allows you to adjust the instrument precisely on the locally measured range by a two-point calibration. This results in a superior accuracy of approx. 1 % of the measured value
• Selectable measuring units: μm, inch (mil)
• Auto-Power-Off

• Measurement precision: - Standard: 3%,3% of measured value or ± 2,5 μm - Offset-Accur: 1% of measured value or ± 1 μm
• Type
• - Convex: 1,5 mm - Flat: 1,5 mm - Concave: 25 mm
• Type - Convex: 3 mm,3 mm - Flat: 5 mm - Concave: 50 mm,50 mm
• Minimum thickness of base material: 300 µm
• Overall dimensions W×D×H 131×65×28 mm
• Battery operation, batteries standard 4×1.5 V AAA
• Net weight approx. 0,10 kg

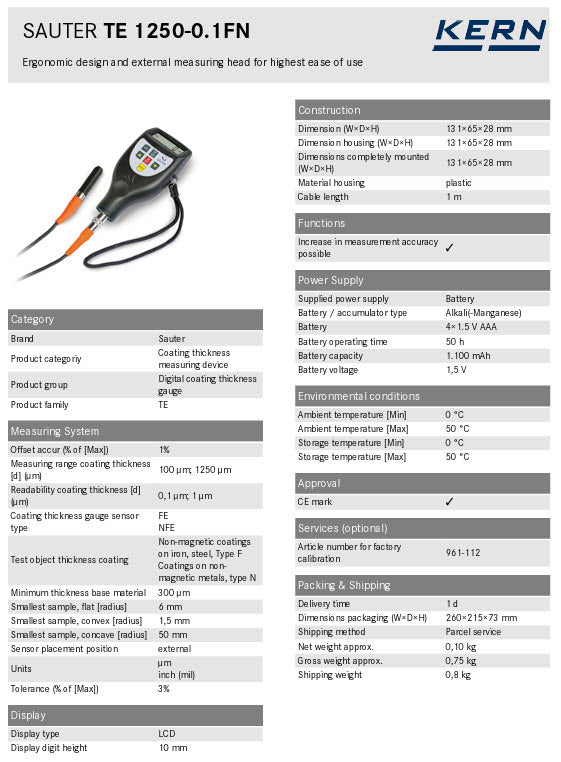

Technical Data
