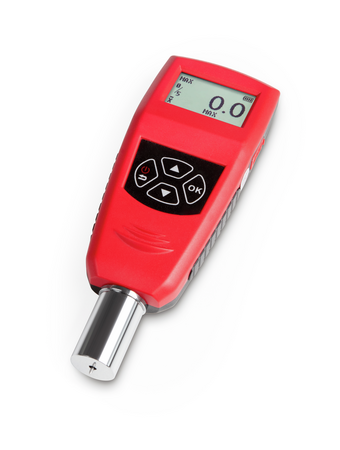

KERN® Digital Shore hardness tester HEA 100 Shore A

Name: KERN® Digital Shore hardness tester HEA 100 Shore A
Brand: Kern
SKU: HEA 100
Price: 640.0 GBP
Availability: InStock

KernSKU: HEA 100

All prices exclude VAT, which will be added at checkout.

Price:

£640.00

Quantity:

Description

To measure the hardness of plastics through penetration measurement
Shore A: Rubber, elastomers, neoprene, silicone, vinyl, so plastics, felt, leather and similar material
Different measuring modes: Average value, maximum value, chronological sequence
Limit alarm function, which triggers an audible and visual signal when the value goes below or above the defined limits
Entering the workpiece number is possible
Setting the measuring time from 0 to 99 seconds
Recommended for internal comparison measurement

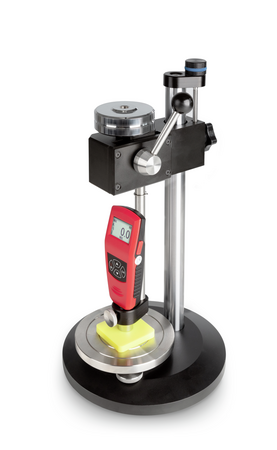

Can be attached to the test stand SAUTER TI-HEA to improve the measurement result

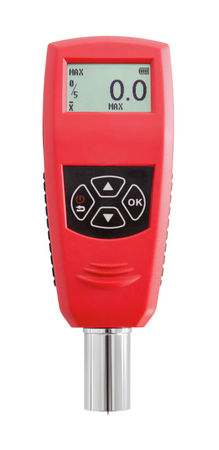

Large display with backlight
Battery status indicator
USB data interface, as standard

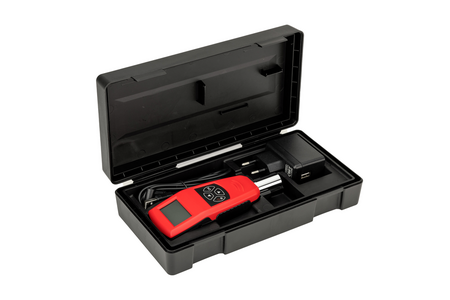

Delivered in a robust carrying case

Hardness scales	Shore A
Measuring range Shore [Max]	100 HA
Readability Shore [d]	0,1 HA
Tolerance (% of [Max])	1%
Hold function
Peak function
Function for averaging
Interfaces	USB-Device
Material housing	plastic

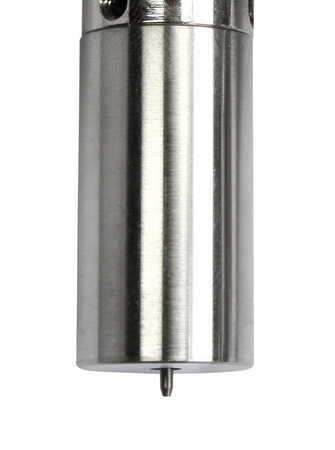

Measuring probe diameter	18 mm
Test force Hardness measurement	10 N
Product family	HE
GTIN/EAN number	4045761274013

Product Information
Part Number	HEA 100
Product Description	KERN® Digital Shore hardness tester HEA 100
Manufacturer	Kern
