KERN® Ultrasonic Thickness Gauge external TN 80-0.01US Material thickness pulse-echo [Max] (mm) 80 mm

Roll over image to zoom in Click on image to zoom

KERN® Ultrasonic Thickness Gauge external TN 80-0.01US Material thickness pulse-echo [Max] (mm) 80 mm

Name: KERN® Ultrasonic Thickness Gauge external TN 80-0.01US Material thickness pulse-echo [Max] (mm) 80 mm
Brand: Kern
SKU: TN 80-0.01US
Price: 695.0 GBP
Availability: InStock

KernSKU: TN 80-0.01US

All prices exclude VAT, which will be added at checkout.

Price:

£695.00

Quantity:

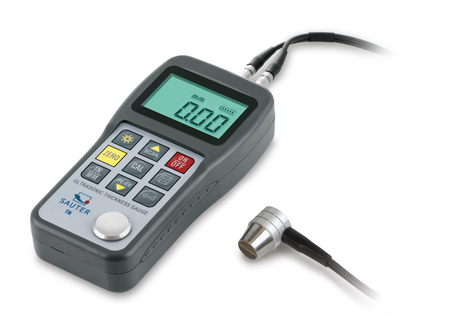

External measuring head
Data interface USB standard
Scan mode (10 measurements per sec.) or single point measuring mode possible
Internal memory for up to 20 files (with up to 100} values per file)
Selectable measuring units: mm inch
Scope of delivery: Operating instructions, batteries, external measuring head (∅ 6 mm) and ultrasound contact gel

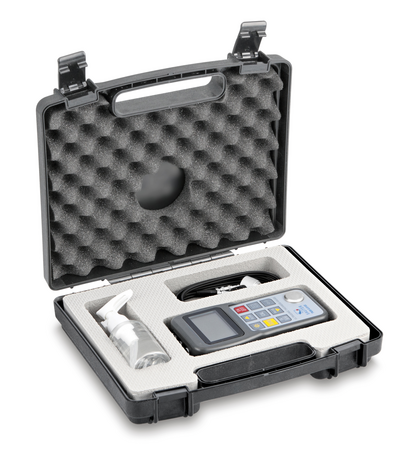

Delivered in a robust carrying case

Technical Data

Material thickness pulse-echo [Max] (mm)	80 mm
Material thickness pulse-echo [Min] (mm)	0,75 mm
Measuring range pulse-echo	0,75 mm – 80 mm
Readability material thickness [d] (mm)	0,01 mm
Tolerance (% of [Max])	0,5%
Units	mm, inch
Speed of sound [Max] (m/s)	9999 m/s
Speed of sound [Min] (m/s)	1000 m/s
Speed of sound	1000 m/s – 9999 m/s
Measuring head measuring frequency	7 MHz
Battery	2×1.5 V AA
Material housing	plastic
Dimensions completely mounted (W×D×H)	150×74×32 mm
Interfaces	USB-Device
Cable length	0,9 m

Product Information
Part Number	TN 80-0.01US
Product Description	KERN® Ultrasonic Thickness Gauge external TN 80-0.01US Material thickness pulse-echo [Max] (mm) 80 mm
Manufacturer	Kern
