KERN® Coating thickness gauge - FE/NFE intern TB 1000-0.1FN Measuring range coating thickness [d] (µm) 100 µm; 1000 µm

Roll over image to zoom in Click on image to zoom

KERN® Coating thickness gauge - FE/NFE intern TB 1000-0.1FN Measuring range coating thickness [d] (µm) 100 µm; 1000 µm

Name: KERN® Coating thickness gauge - FE/NFE intern TB 1000-0.1FN Measuring range coating thickness [d] (µm) 100 µm; 1000 µm
Brand: Kern
SKU: TB 1000-0.1FN
Price: 455.0 GBP
Availability: InStock

KernSKU: TB 1000-0.1FN

All prices exclude VAT, which will be added at checkout.

Price:

£455.00

Quantity:

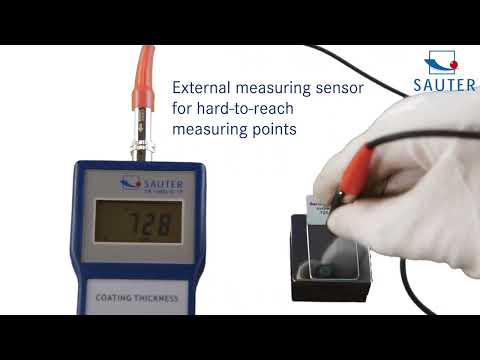

External sensor for difficult-to-access measuring points

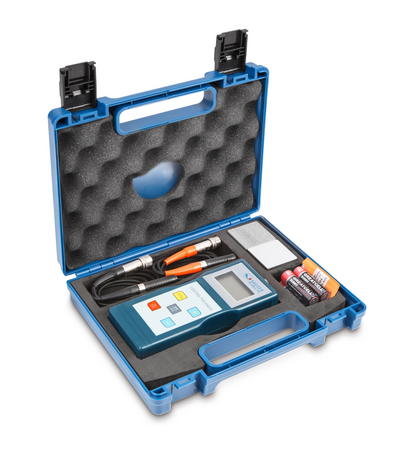

Base plate and calibration foils included
Delivered in a robust carrying case
Offset-Accur: This function allows you to adjust the instrument precisely on the locally measured range by a two-point calibration. This results in a superior accuracy of 1 % (or less) of the measured value
Selectable measuring units: µm inch (mil)
Auto-Power-Off

Technical Data

Measuring range coating thickness [d] (µm)	100 µm; 1000 µm
Readability coating thickness [d] (µm)	0,1 µm; 1 µm
Tolerance (% of [Max])	3%
Units	µm, inch (mil)
Coating thickness gauge sensor type	FE, NFE
Test object thickness coating	Non-magnetic coatings on iron, steel, Type F, Coatings on non-magnetic metals, type N
Battery	4×1.5 V AA
Increase in measurement accuracy possible
Material housing	plastic
Dimensions completely mounted (W×D×H)	161×69×32 mm
Cable length	1 m
Sensor placement position	external

Product Information
Part Number	TB 1000-0.1FN
Product Description	KERN® Coating thickness gauge - FE/NFE intern TB 1000-0.1FN Measuring range coating thickness [d] (µm) 100 µm; 1000 µm
Manufacturer	Kern
