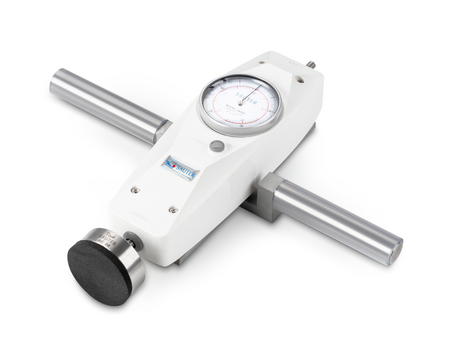

KERN® Gravestone Tester FA 500G, Max N 500 N, Readout 2,5 N

Description

• For testing the stability of tombstones in accordance with VSG 4.7
• Pressure disc with foam rubber attachment
• Stainless steel handle with rubber covering for secure handling
• No electrical power supply required due to mechanical measuring system
• Real time or peak hold switch to observe transients or capture peaks by a drag indicator
• For tensile force and compressive force measurements
• Scope of delivery:
  - 1× FA 500
  - 1× AE 08
  - 1× AFH 04

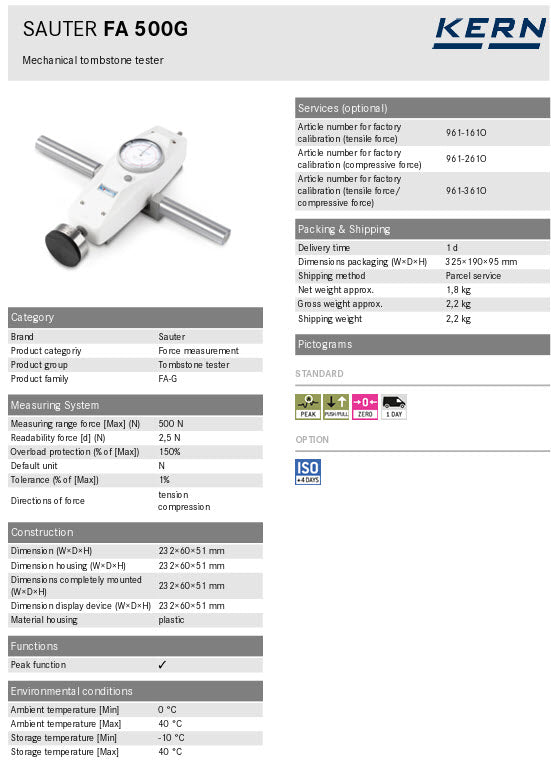

• Technical Data

  Measuring range force [Max] (N)	500 N
  Readability force [d] (N)	2,5 N
  Tolerance (% of [Max])	1%
  Peak function	Yes
  Material housing	plastic
  Dimensions completely mounted (W×D×H)	232×60×51 mm
  Net weight approx.	1,8 kg
  GTIN/EAN number	4045761126787
