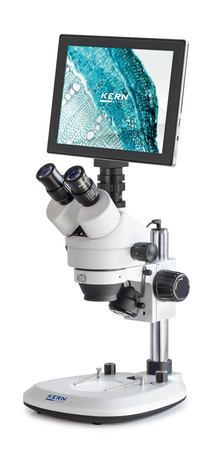

The flexible, affordable all-rounder with zoom function as a digital solution for schools, training companies, inspection authorities and laboratories.

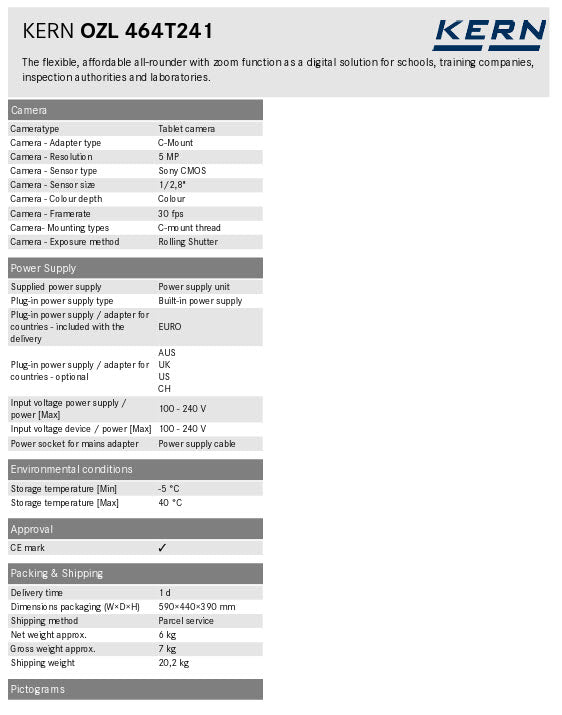

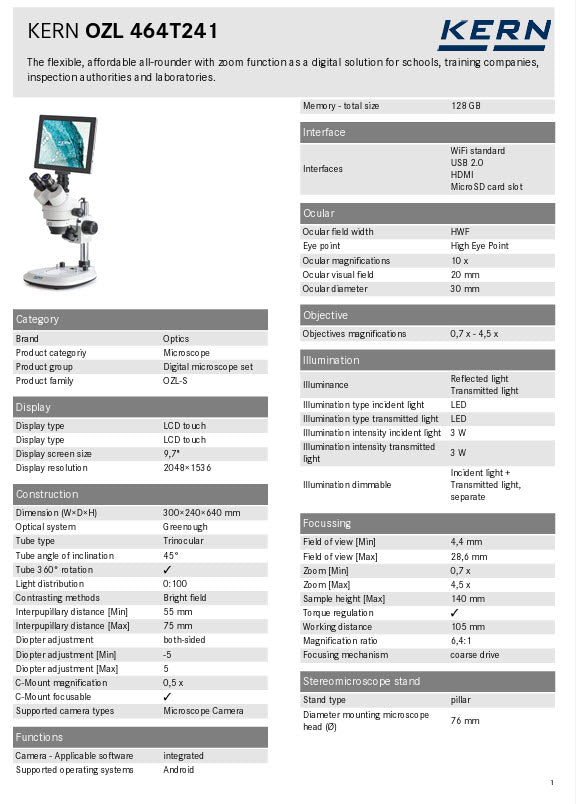

Technical Data
| Optical system | Greenough |
| Tube type | Trinocular |
| Ocular magnifications | 10 x |
| Ocular visual field | 20 mm |
| Magnification ratio | 6,4:1 |
| Zoom [Min] | 0,7 x |
| Zoom [Max] | 4,5 x |
| Illuminance | Reflected light, Transmitted light |
| Illumination intensity transmitted light | 3 W |
| Illumination type transmitted light | LED |
| Illumination intensity incident light | 3 W |
| Illumination type incident light | LED |
| Focusing mechanism | coarse drive |
| Display type | LCD touch |
| Display screen size | 9,7" |
| Display resolution | 2048×1536 |
| mcuDetails | Quad Core Cortex-A17; 1,8 GHz |
| Camera - Sensor type | Sony CMOS |
| Camera - Colour depth | Colour |
| Camera - Sensor size | 1/2,8" |
| Camera - Resolution | 5 MP |
| Camera - Framerate | 30 fps |
| Interfaces | WiFi, USB 2.0, HDMI, MicroSD card slot |
| C-Mount magnification | 0,5 x |
| Working distance | 105 mm |
| Sample height [Max] | 140 mm |
| Stand type | pillar |
| Dimension (W×D×H) | 300×240×640 mm |
| GTIN/EAN number | 4045761490789 |
No technical information is currently available.
No application information is currently available.

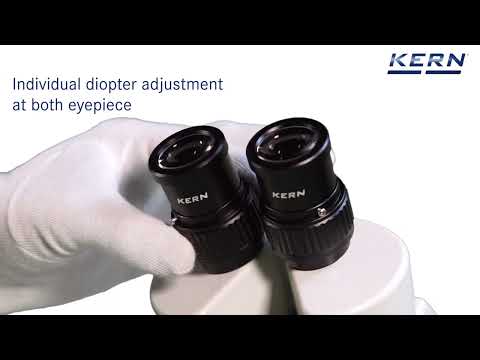

Product Video
