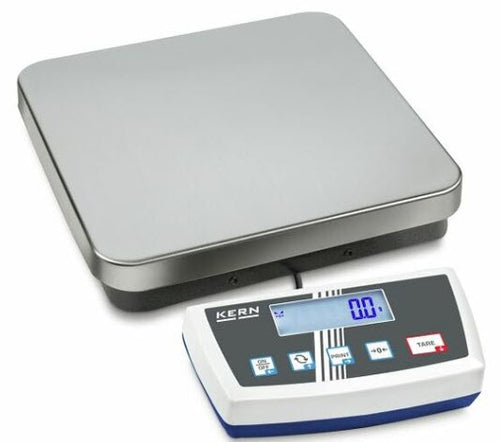

Kern DS Platform Scales DS 100K0.5, 100kg capacity, reading 0.5g. Pan size 500x400mm (C)

• Robust platform scales can be used as parcel, industrial, and counting scales.
• Display unit with numeral height 21 mm can be remote from platform; can be stood or mounted using flexible cable.
• Robust platform with a protective hood over the display unit.
• Simple, self-explanatory user guidance with (yes/no) dialogue in the display.
• Selectable mains or battery operation (battery available on request).
• Units of weight (e. g. screw weight) can be freely programmed.
• With automatic reference optimisation for exact counting.
• Adjustment programme CAL: For accuracy adjustment (required calibration weight available on request).
• Quantity counting: Reference quantities selectable 1, 5, 10, 20 pieces.
• Display selectable between pieces and weight.
• Numeric tare preference for well-known container weight. Useful for filling quantities.
• Percentage determination: Display of deviation from the reference weight in % instead of in grammes.
• KERN Universal Port (KUP): allows the connection of external KUP interface adapters (not included) such as RS-232, USB for exchanging data and control commands, without installation effort.

Mains adapter 230 V / 50 Hz and protective hood.

Internal and external rechargeable battery, calibration weight, wall attachments, printer, stand and interface adapter such as RS-232, USB on request.

Technical Data

maximum weighing range		0 kg - 100 kg
Scale divisions		0.5 g
Number height display unit		18 mm
Reproducibility		0.5 g
Manufacturer's designation		DS
Settling time		3 s
Minimum unit weight		5 g
Dimensions of weighing plate		500×400 mm
Power supply		Mains operated
Net weight		19 kg
Type of product		Platform balance
