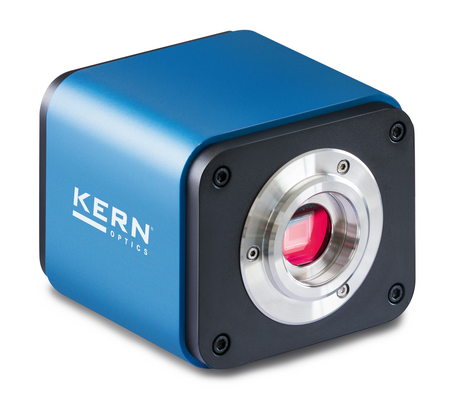

Kern HDMI/USB Digital Cameras ODC 852 Resolution 5MP Size 1/1,8" CMOS Sensor Pixel size 2,4×2,4 µm

Description

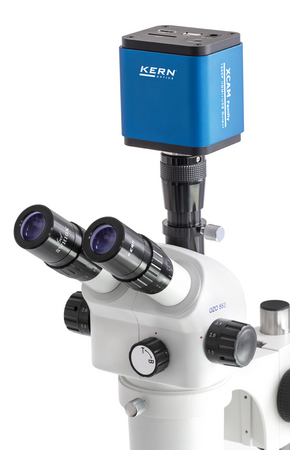

• The HDMI autofocus camera ODC 852 offers you a perfect, effective solution for modern microscopy. The autofocus function automatically detects and adjusts the focus level so that you always have a razor-sharp image. Ideal for all applications in connection with a KERN stereo microscope
• Realtime images n the ODC 852 can be transferred to an HDMI-compatible display device using the HDMI connection and they can also be stored on the SD card which was delivered with the product. As an alternative, data can also be transferred using the WiFi module (ODC 852) to a PC or laptop in combination with the KERN OXM 902 software which is included with the delivery
• Power supply is from an external 12 V power unit

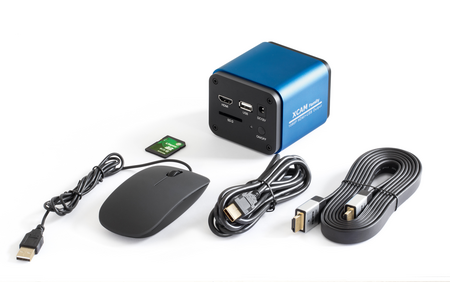

• Scope of delivery ODC 852: Camera, USB mouse, USB 2.0 cable (length: 2 m), HDMI cable (length: 2 m), SD card (16 GB), WiFi adapter and camera software Microscope VIS Pro KERN OXM 902
• Please order the appropriate C-mount adapter to fit your KERN microscope now
•


  Technical Data

  Camera - Resolution	5 MP
  Camera - Sensor type	Sony CMOS
  Camera - Sensor size	1/1,8"
  Camera - Colour depth	Colour
  Camera - Pixel size	2,4×2,4 µm
  Camera - FPS at Resolution range 1	30 FPS, 1920x1080
  Camera - FPS at Resolution range 2	25 FPS, 1920x1080
  Camera - Exposure time	[Min] 0,03 ms / [Max] 918 ms
  Camera - Exposure method	Rolling Shutter
  Interfaces	WiFi standard, USB 2.0, HDMI, SD card slot
  Camera- Mounting types	C-mount
  Supported operating systems	Win 7, Win 8, Win 10, Win 11
  Camera - Applicable software	external (OXM 902)
  Dimension (W×D×H)	92×68×68 mm
