KernSKU: HMM
List price: £1,150.00 Offer price: £999.00 Excluding VAT

Description

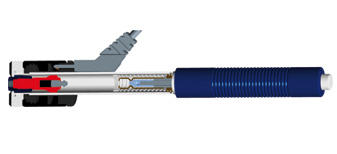

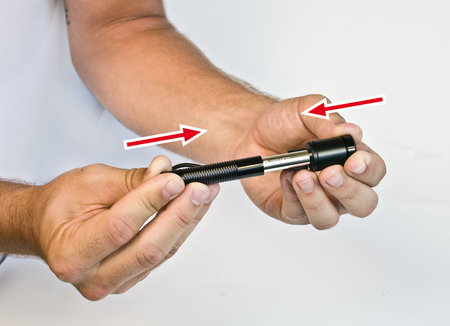

  • Impact (rebound) sensor: The bounce module is accelerated by a spring against the item being tested. Depending on how hard the object is, the kinetic energy of the module will be absorbed. The speed reduction will be measured and converted to Leeb hardness values

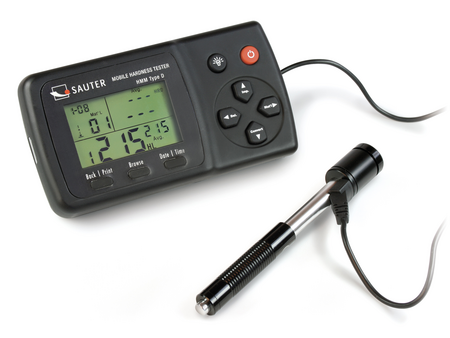

  • External impact sensor (Type D) included

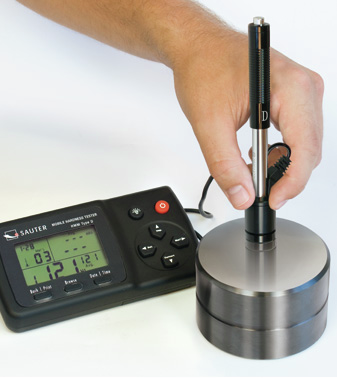

  • Mobility: In comparison with stationary table-top devices and testing devices with an internal sensor, using the SAUTER HMM offers the highest level of mobility and flexibility
  • All measurement directions possible (360°) thanks to an automatic compensation function
  • Hardness test block for calibration included (790 ± 40 HL)
  • Internal memory for up to 9 measurement values
  • Mini statistics function: displays the measured result, the average value, the impact direction, date and time
  • Measurement value display: (B and C), Vickers (HV), Brinell (HB), Shore (HSD), Leeb (HL), tensile strength (MPa)
  • Automatic unit conversion: The measuring result is automatically converted into all specified hardness units

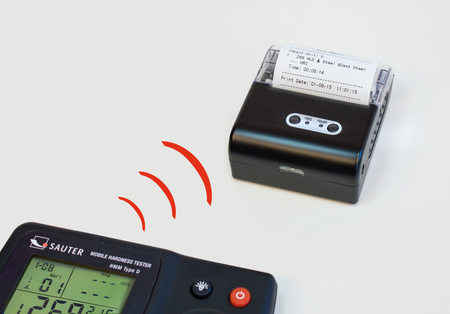

  • Infrared printer for direct output of the measuring results is included with delivery

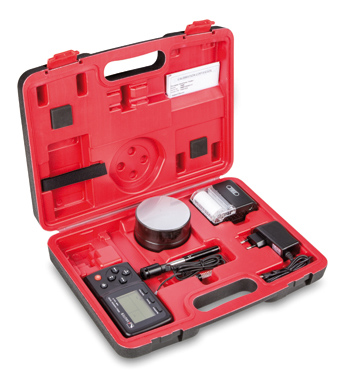

  • Delivered in a robust carrying case

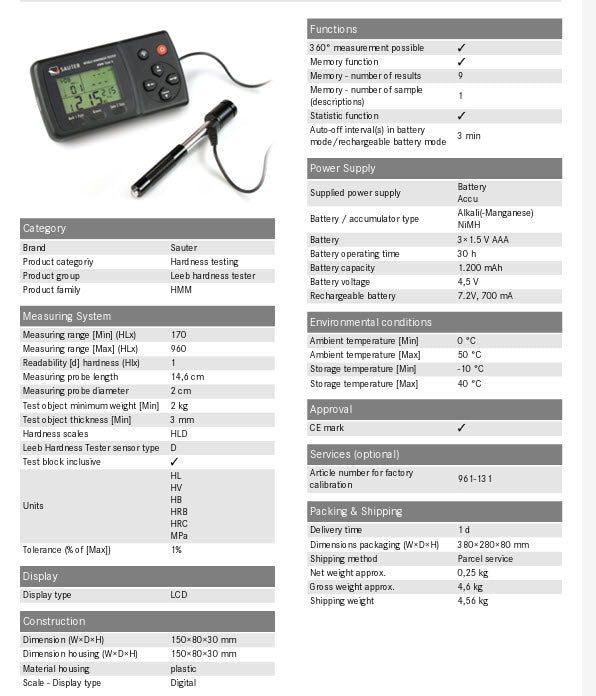

Technical Data

Measuring range Leeb 170 – 960
Readability [d] hardness (Hlx) 1
Tolerance (% of [Max]) 1%
Units HL, HV, HB, HRB, HRC, MPa
Hardness scales HLD
Test object thickness [Min] 3 mm
Test object minimum weight [Min] 2 kg
Battery 3×1.5 V AAA
Memory function
Statistic function
Material housing plastic
Measuring probe diameter 2 cm
Measuring probe length 14,6 cm
Test block inclusive
Product family HMM
GTIN/EAN number 4045761139657
