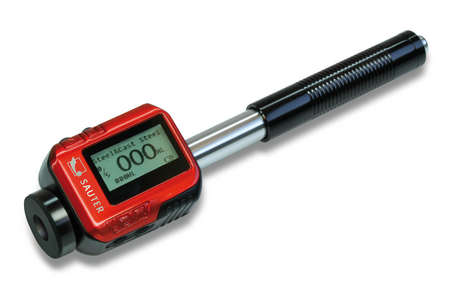

Description
- User-friendly operation: The compact version enables the product to be used in a significantly wider range of applications compared with traditional devices
- The measuring device has been designed for one-hand operation and this allows the user to work more quickly and flexibly
- Modern LCD display: Optimised for industrial applications: increased luminosity and backlight can be switched on, that way the display can be read from any angle
- All measurement directions possible (360°) thanks to an automatic compensation function
- Internal impact sensor included (Type D)
- Measurement value display: (B and C), Vickers (HV), Brinell (HB), Leeb (HL)
- Standard block for calibration not included in scope of delivery
- Internal data memory for up to 500 measurements with date and time
- Data interface USB, including USB interface cable

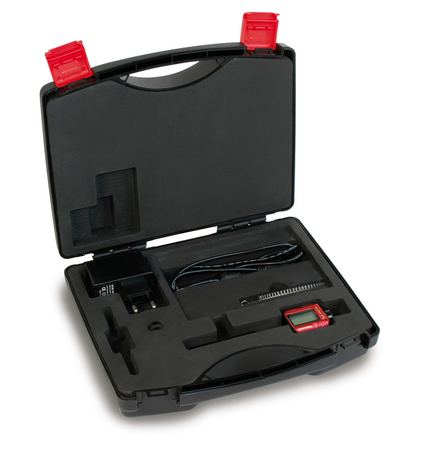

- Delivered in a robust carrying case

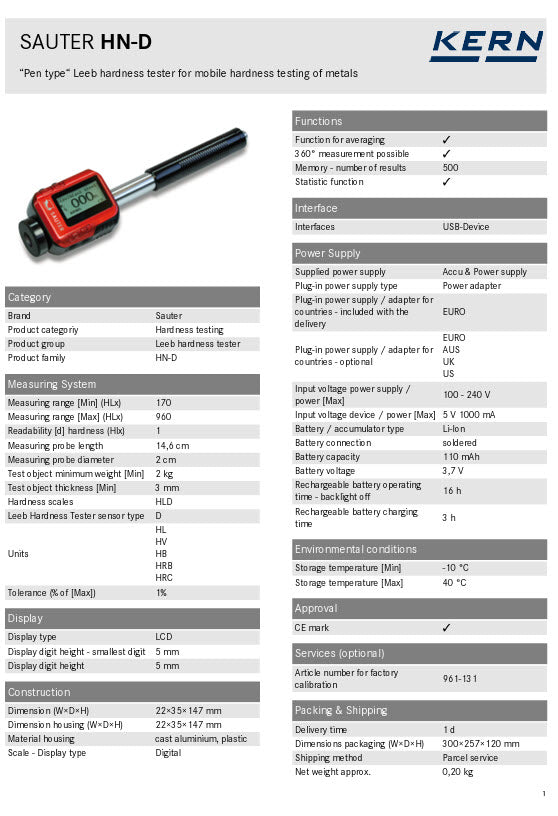

Technical Data
| Measuring range Leeb | 170 – 960 |
| Readability [d] hardness (Hlx) | 1 |
| Tolerance (% of [Max]) | 1% |
| Units | HL, HV, HB, HRB, HRC |
| Hardness scales | HLD |
| Test object thickness [Min] | 3 mm |
| Test object minimum weight [Min] | 2 kg |
| Statistic function | |
| Function for averaging | |
| Interfaces | USB-Device |
| Material housing | cast aluminium, plastic |
| Measuring probe diameter | 2 cm |
| Measuring probe length | 14,6 cm |
| Product family | HN-D |
| GTIN/EAN number | 4045761139671 |
