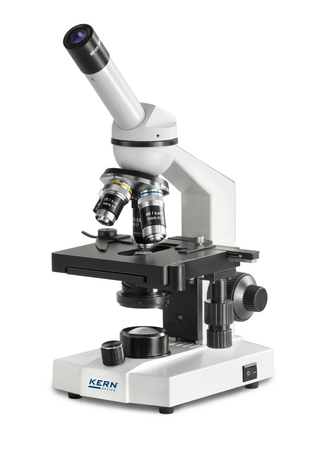

Kern OBS Educational Microscopes OBS 105, Monocular tube, 10x Eye piece, Objectives 4x/10x/40x, Mechanical stage

Roll over image to zoom in Click on image to zoom

Kern OBS Educational Microscopes OBS 105, Monocular tube, 10x Eye piece, Objectives 4x/10x/40x, Mechanical stage

Name: Kern OBS Educational Microscopes OBS 105, Monocular tube, 10x Eye piece, Objectives 4x/10x/40x, Mechanical stage
Brand: Kern
SKU: OBS 105
Price: 250.0 GBP
Availability: InStock

KernSKU: OBS 105

All prices exclude VAT, which will be added at checkout.

Price:

£250.00

Quantity:

The school microscope – for the first steps in microscopy and for use in biology lessons

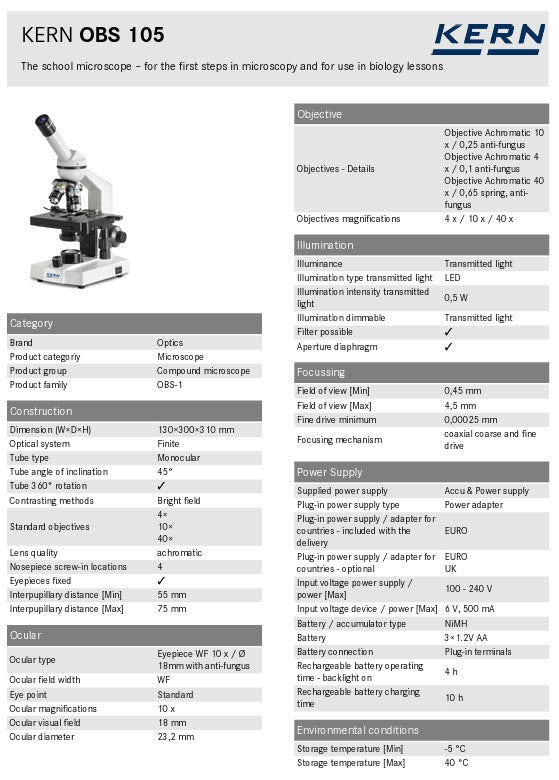

Technical Data

Optical system	Finite
Tube type	Monocular
Ocular magnifications	10 x
Ocular visual field	18 mm
Standard objectives	4×, 10×, 40×
Lens quality	achromatic
Nosepiece screw-in locations	4
Illuminance	Transmitted light
Illumination intensity transmitted light	0,5 W
Illumination type transmitted light	LED
Condensor type	Abbe
Kondensor-Apertur	1,25
Kondensor-Montage	fixed

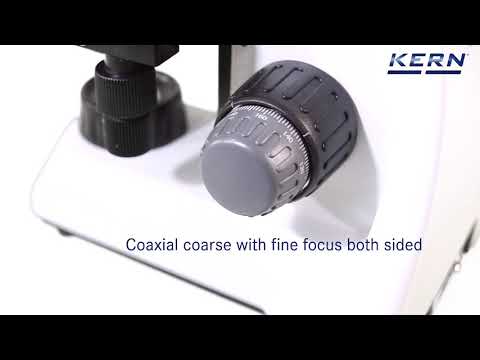

Focusing mechanism	coaxial coarse and fine drive
Fine drive minimum	0,00025 mm
Dimension (W×D×H)	130×300×310 mm
GTIN/EAN number	4045761228382

Product Information
Part Number	OBS 105
Illumination	Transmitted light 3W
Manufacturer	Kern
