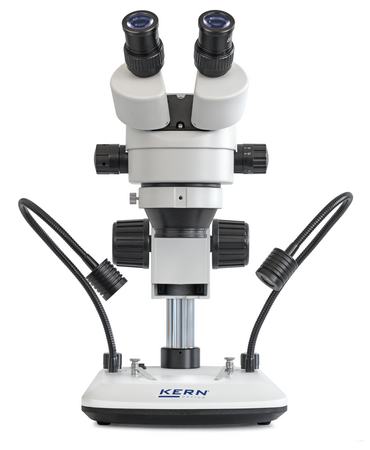

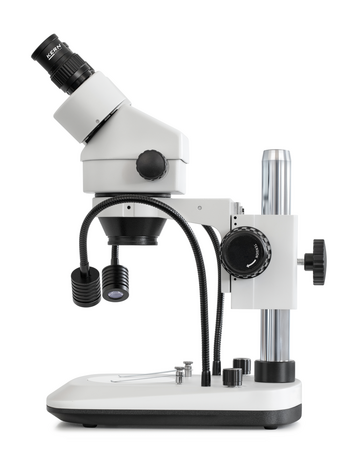

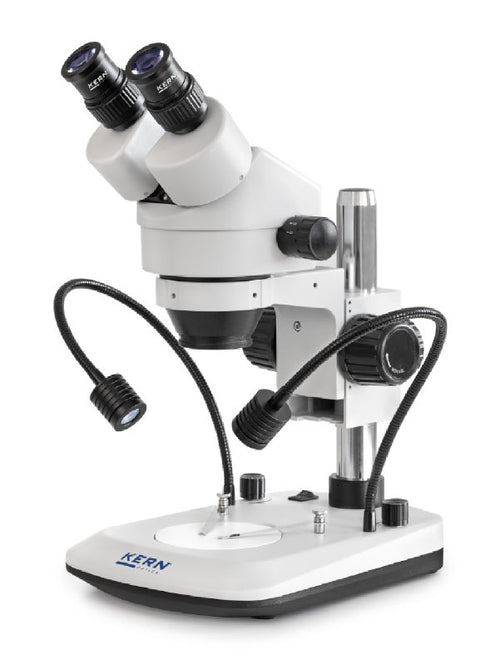

Kern OZL 473 Stereo Zoom Microscopes Binocular HWF Eyepiece 10× Ø 20.0 mm , Zoom 0,7 x - 4,5 x , Illumination 3W LED (Incident)

KernSKU: OZL 473

Price: Sale price £750.00 Excluding VAT
  • The products in the KERN OZL-47 series are stereo zoom microscopes, which will impress you with their easy handling, flexibility as well as their stability and economical price.
  • A highlight is the powerful and infinitely dimmable integrated LED double swan neck illumination unit (incident), which ensures individual illumination which can be adjusted quickly
  • As well as excellent optical characteristics and their large working surface, these models offer the highest level of comfort in this class – ideal for training companies, workshops as well as assembly and repair workstations, e.g. in the electronics industry.
  • As standard this microscope offers you continuous total magnification of 7 x–45 x
  • The pillar stand offers you the highest level of flexibility and the freedom to remove the microscope head and to integrate it into other modular systems, for example into a universal stand
  • A large selection of eyepieces, external illumination units as well as auxiliary objectives are available as accessories
  • A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery

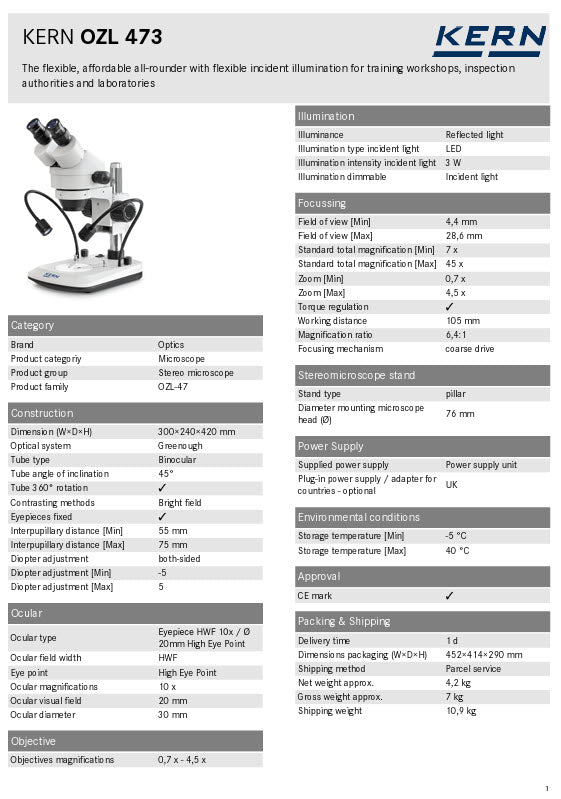

Technical Data

Optical system Greenough
Tube type Binocular
Ocular magnifications 10 x
Ocular visual field 20 mm
Magnification ratio 6,4:1
Zoom [Min] 0,7 x
Zoom [Max] 4,5 x
Illuminance Reflected light
Illumination intensity incident light 3 W
Illumination type incident light LED
Focusing mechanism coarse drive
Working distance 105 mm
Stand type pillar
Dimension (W×D×H) 300×240×420 mm
GTIN/EAN number 4045761356672

No technical information is currently available.

No application information is currently available.
