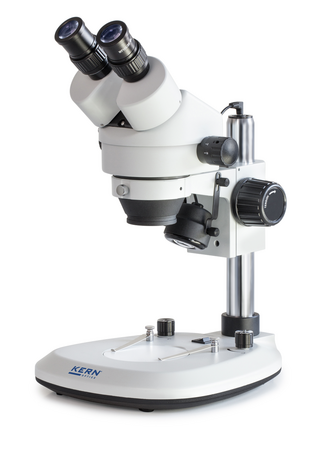

- The products in the KERN OZL-46 series are stereo zoom microscopes, which will impress you with their easy handling, flexibility as well as their stability and economical price.
- The LED incident and transmitted illumination included as standard guarantees the very best illumination of your sample
- As well as excellent optical characteristics and their large working surface, these models offer the highest level of comfort in this class – ideal for training companies, workshops as well as assembly and repair workstations, e.g. in the electronics industry.
- As standard this microscope offers you continuous total magnification of 7 x–45 x
- The pillar stand offers you the highest level of flexibility and the freedom to remove the microscope head and to integrate it into other modular systems, for example into a universal stand
- A large selection of eyepieces, external illumination units as well as auxiliary objectives are available as accessories
- A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery
-

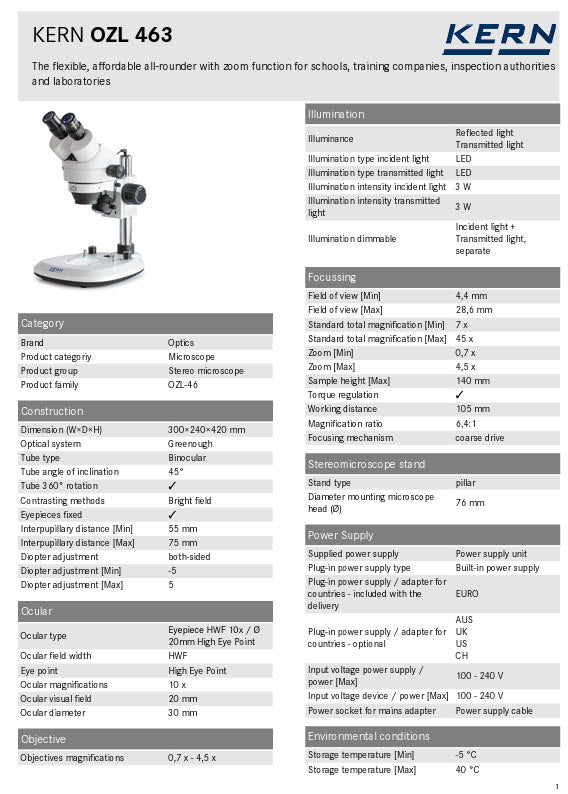

Technical Data
Optical system Greenough Tube type Binocular Ocular magnifications 10 x Ocular visual field 20 mm Magnification ratio 6,4:1 Zoom [Min] 0,7 x Zoom [Max] 4,5 x Illuminance Reflected light, Transmitted light Illumination intensity transmitted light 3 W Illumination type transmitted light LED Illumination intensity incident light 3 W Illumination type incident light LED Focusing mechanism coarse drive Working distance 105 mm Sample height [Max] 140 mm Stand type pillar Dimension (W×D×H) 300×240×420 mm GTIN/EAN number 4045761175112
No technical information is currently available.
No application information is currently available.
