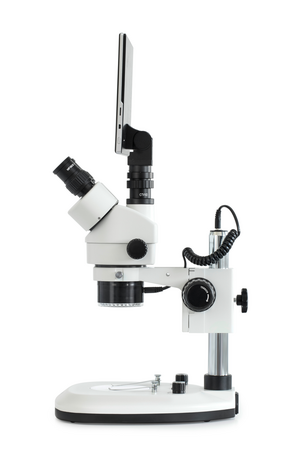

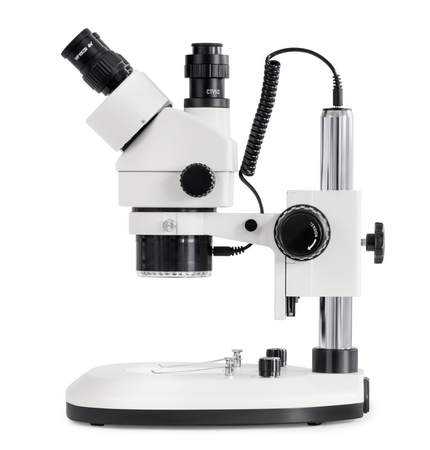

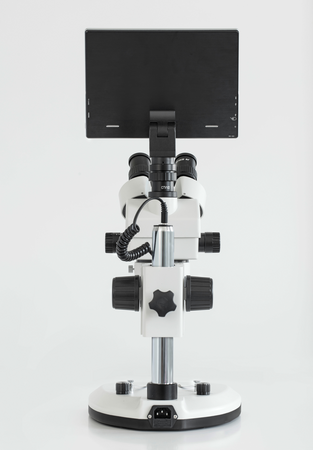

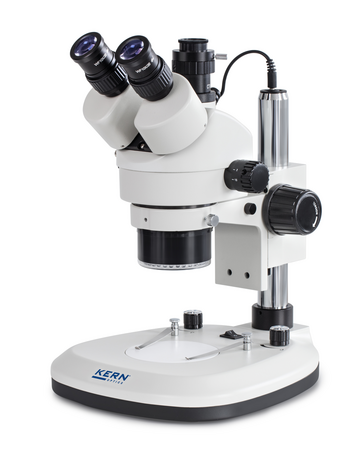

Kern OZL Stereo Zoom Microscopes OZL 466 Trinocular 10x Eye piece, Zoom .7 to 4.5X, Integrated LED Ring Light

Roll over image to zoom in Click on image to zoom

Kern OZL Stereo Zoom Microscopes OZL 466 Trinocular 10x Eye piece, Zoom .7 to 4.5X, Integrated LED Ring Light

Name: Kern OZL Stereo Zoom Microscopes OZL 466 Trinocular 10x Eye piece, Zoom .7 to 4.5X, Integrated LED Ring Light
Brand: Kern
SKU: OZL 466
Price: 595.0 GBP
Availability: InStock

KernSKU: OZL 466

All prices exclude VAT, which will be added at checkout.

Price:

£595.00

Quantity:

The products in the KERN OZL-46 series are stereo zoom microscopes, which will impress you with their easy handling, flexibility as well as their stability and economical price.

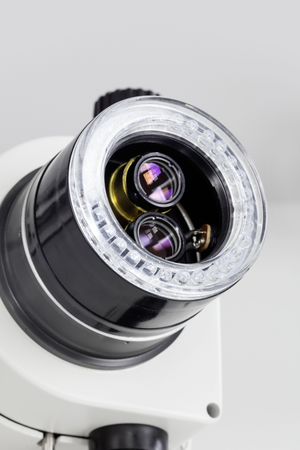

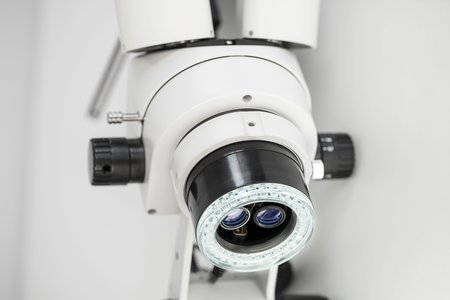

The LED incident and transmitted illumination included as standard guarantees the very best illumination of your sample
As well as excellent optical characteristics and their large working surface, these models offer the highest level of comfort in this class – ideal for training companies, workshops as well as assembly and repair workstations, e.g. in the electronics industry.
As standard this microscope offers you continuous total magnification of 7 x–45 x
The pillar stand offers you the highest level of flexibility and the freedom to remove the microscope head and to integrate it into other modular systems, for example into a universal stand
A large selection of eyepieces, external illumination units as well as auxiliary objectives are available as accessories
A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery

Technical Data

Optical system	Greenough
Tube type	Binocular
Ocular magnifications	10 x
Ocular visual field	20 mm
Magnification ratio	6,4:1
Zoom [Min]	0,7 x
Zoom [Max]	4,5 x
Illuminance Integrated LED Ring Light	Reflected light, Transmitted light
Illumination intensity transmitted light	3 W
Illumination type transmitted light	LED
Illumination intensity incident light	3 W
Illumination type incident light	LED
Focusing mechanism	coarse drive
Working distance	105 mm
Sample height [Max]	140 mm
Stand type	pillar
Dimension (W×D×H)	300×240×420 mm
GTIN/EAN number	4045761207516

Product Information
Part Number	OZL 466
Zoom Ratio	0.7 - 4.5X
Illumination	Illuminance Integrated LED Ring Light Reflected light, Transmitted light, 3W
Tube Type	Trinocular
Manufacturer	Kern
