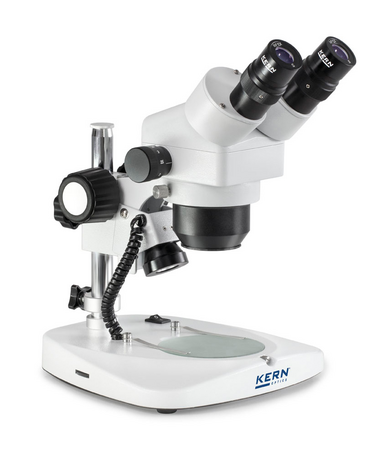

- The KERN OZL-44 is a stereo zoom microscope, which will impress you with the easy handling, flexibility as well as the stability and economical price
- The LED incident and transmitted illumination included as standard guarantees the very best illumination of your sample
- As well as excellent optical characteristics and their large working surface, these models offer the highest level of comfort in this class – ideal for training companies, workshops as well as assembly and repair workstations, e.g. in the electronics industry.
- As standard this microscope offers you continuous total magnification of 7,5 x–36 x
- The OZL-44 series is available as a binocular version. The eyepieces are fixed in the eyepiece tube, to stop them getting damaged or lost.
- The pillar stand offers you the highest level of flexibility and the freedom to remove the microscope head and to integrate it into other modular systems, for example into a universal stand
- A large selection of eyepieces, external illumination units as well as auxiliary objectives are available as accessories
- A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery
The affordable and flexible stereo zoom microscope for laboratories, inspection authorities and quality controls
| Optical system | Greenough |
| Tube type | Binocular |
| Ocular magnifications | 10 x |
| Ocular visual field | 20 mm |
| Magnification ratio | 4,8:1 |
| Zoom [Min] | 0,75 x |
| Zoom [Max] | 3,6 x |
| Illuminance | Reflected light, Transmitted light |
| Illumination intensity transmitted light | 0,35 W |
| Illumination type transmitted light | LED |
| Illumination intensity incident light | 1 W |
| Illumination type incident light | LED |
| Focusing mechanism | coarse drive |
| Working distance | 86 mm |
| Sample height [Max] | 100 mm |
| Stand type | pillar |
| Dimension (W×D×H) | 230×235×360 mm |
| GTIN/EAN number | 4045761170377 |
No technical information is currently available.
No application information is currently available.
