- First-class optics and strong illumination combined with a high level of flexibility

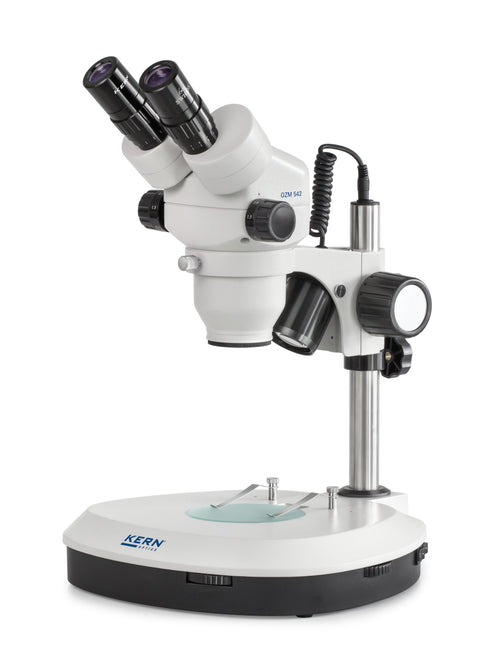

- The KERN OZM-5 series is a range of excellent stereo zoom microscopes with above-average optical features.
- The ergonomic shape allows a simple, effortless working over a period of several hours.
- The extraordinarily strong and continuously dimmable 3W LED incident and transmitted illumination ensures a flexible and particularly good level of illumination for your sample.
- With its large working distance, an extra large field of view and its brilliant resolution, the KERN OZM provides sharp, high-contrast, colour-true images.
- Light distribution: 0:100
- Objective: 0,7 x – 4,5 x
- There is a choice of a binocular model as well as a trinocular model for connecting a camera for documentation purposes and for quality reports
- The pillar stand is particularly flexible due to its variable and sturdy adjustment mechanism and therefore enables ergonomic working procedures.
- A large selection of eyepieces, (universal) stands, a darkfield kit, external illumination units as well as auxiliary objectives and more are available as accessories
- A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery
-
Technical Data
Optical system Greenough Tube type Trinocular Ocular magnifications 10 x Ocular visual field 23 mm Magnification ratio 6,4:1 Zoom [Min] 0,7 x Zoom [Max] 4,5 x Illuminance Reflected light, Transmitted light Illumination intensity transmitted light 3 W Illumination type transmitted light LED Illumination intensity incident light 3 W Illumination type incident light LED Focusing mechanism coarse drive Working distance 110 mm Sample height [Max] 130 mm Stand type pillar Dimension (W×D×H) 330×285×440 mm GTIN/EAN number 4045761169302
No technical information is currently available.
No application information is currently available.

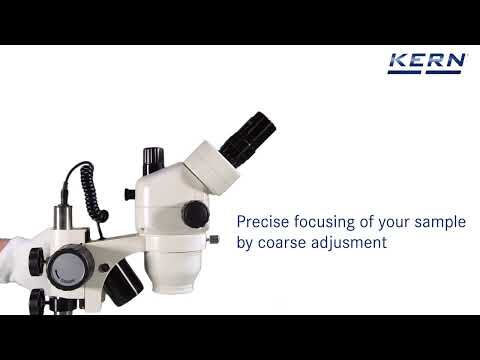

Product Video
