Kern OZM 544 Stereo Zoom Microscopes Trinocular HWF Eyepiece 10× , Zoom 0,7 x - 4,5 x , 3W LED, Incident/Transmitted

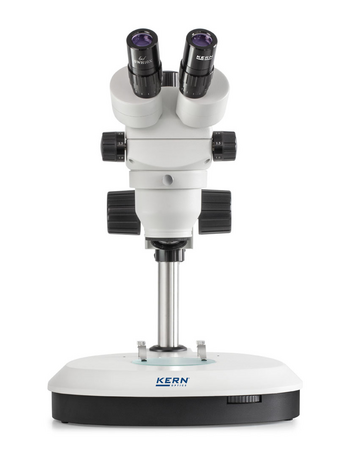

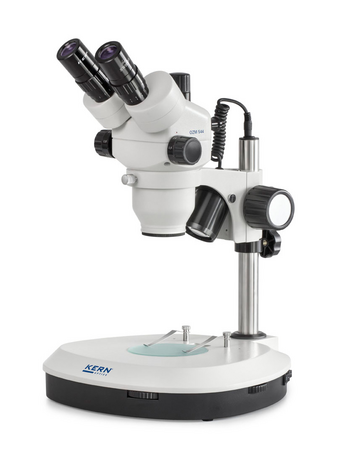

Roll over image to zoom in Click on image to zoom

Kern OZM 544 Stereo Zoom Microscopes Trinocular HWF Eyepiece 10× , Zoom 0,7 x - 4,5 x , 3W LED, Incident/Transmitted

Name: Kern OZM 544 Stereo Zoom Microscopes Trinocular HWF Eyepiece 10× , Zoom 0,7 x - 4,5 x , 3W LED, Incident/Transmitted
Brand: Kern
SKU: OZL 544
Price: 1495.0 GBP
Availability: InStock

KernSKU: OZL 544

All prices exclude VAT, which will be added at checkout.

Price:

£1,495.00

Quantity:

First-class optics and strong illumination combined with a high level of flexibility
The KERN OZM-5 series is a range of excellent stereo zoom microscopes with above-average optical features.
The ergonomic shape allows a simple, effortless working over a period of several hours.
The extraordinarily strong and continuously dimmable 3W LED incident and transmitted illumination ensures a flexible and particularly good level of illumination for your sample.
With its large working distance, an extra large field of view and its brilliant resolution, the KERN OZM provides sharp, high-contrast, colour-true images.
Light distribution: 0:100
Objective: 0,7 x – 4,5 x
There is a choice of a binocular model as well as a trinocular model for connecting a camera for documentation purposes and for quality reports
The pillar stand is particularly flexible due to its variable and sturdy adjustment mechanism and therefore enables ergonomic working procedures.
A large selection of eyepieces, (universal) stands, a darkfield kit, external illumination units as well as auxiliary objectives and more are available as accessories
A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery

Technical Data

Optical system	Greenough
Tube type	Trinocular
Ocular magnifications	10 x
Ocular visual field	23 mm
Magnification ratio	6,4:1
Zoom [Min]	0,7 x
Zoom [Max]	4,5 x
Illuminance	Reflected light, Transmitted light
Illumination intensity transmitted light	3 W
Illumination type transmitted light	LED
Illumination intensity incident light	3 W
Illumination type incident light	LED
Focusing mechanism	coarse drive
Working distance	110 mm
Sample height [Max]	130 mm
Stand type	pillar
Dimension (W×D×H)	330×285×440 mm
GTIN/EAN number	4045761169302

Product Information
Part Number	OZL 544
Zoom Ratio	0.7 - 4.5X
Illumination	Reflected light 3W
Tube Type	Trinocular
Manufacturer	Kern
