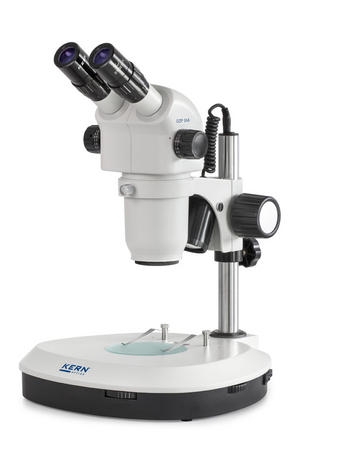

- The KERN OZP stereo zoom microscope stands out through its above-average magnification range and its robust shape which is also ergonomic, it enables effortless, simple working over a period of several hours
- The KERN OZP series is available as a strong, continuously adjustable 3W LED reflected and transmitted light variant for the very best illumination of your sample
- With its large working distance, an extra large field of view and its brilliant resolution, the KERN OZP provides sharp, high-contrast, colour-true images.
- As standard this microscope offers you continuous total magnification of 6 x–55 x
- There is a choice of a binocular model as well as a trinocular model for connecting a camera for documentation purposes and for quality reports
- The pillar stand is particularly flexible due to its variable and sturdy adjustment mechanism and therefore enables ergonomic working procedures.
- A large selection of eyepieces, (universal) stands, a darkfield kit, external illumination units as well as auxiliary objectives and more are available as accessories
- A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery
-

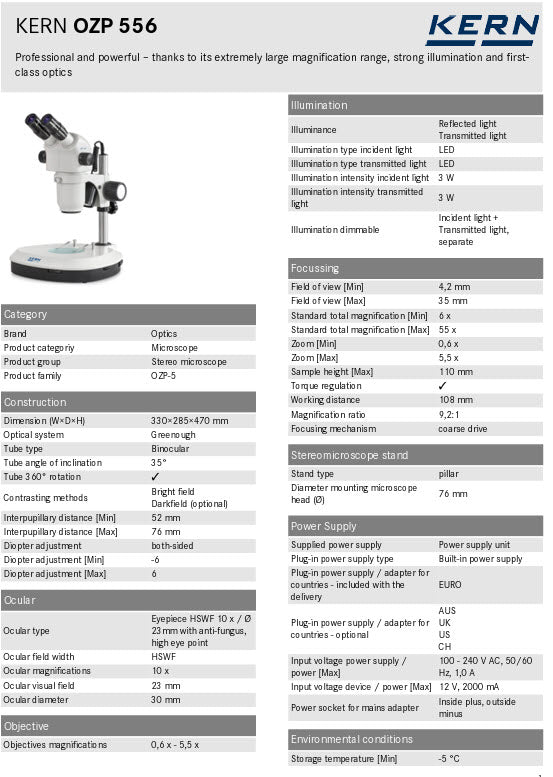

Technical Data
Optical system Greenough Tube type Binocular Ocular magnifications 10 x Ocular visual field 23 mm Magnification ratio 9,2:1 Zoom [Min] 0,6 x Zoom [Max] 5,5 x Illuminance Reflected light, Transmitted light Illumination intensity transmitted light 3 W Illumination type transmitted light LED Illumination intensity incident light 3 W Illumination type incident light LED Focusing mechanism coarse drive Working distance 108 mm Sample height [Max] 110 mm Stand type pillar Dimension (W×D×H) 330×285×470 mm GTIN/EAN number 4045761169371
No technical information is currently available.
No application information is currently available.
