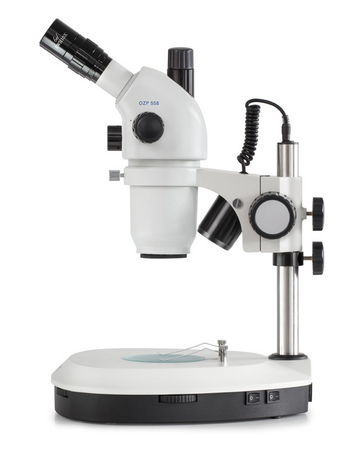

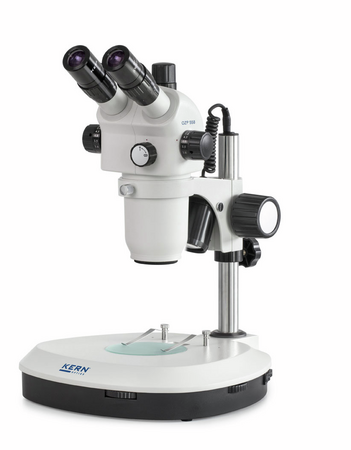

Kern OZP 558 Stereo Zoom Microscopes Trinocular HWF Eyepiece 10× , 0.6 - 5.5X, 3W LED, Incident/Transmitted

Roll over image to zoom in Click on image to zoom

Kern OZP 558 Stereo Zoom Microscopes Trinocular HWF Eyepiece 10× , 0.6 - 5.5X, 3W LED, Incident/Transmitted

Name: Kern OZP 558 Stereo Zoom Microscopes Trinocular HWF Eyepiece 10× , 0.6 - 5.5X, 3W LED, Incident/Transmitted
Brand: Kern
SKU: OZP 558
Price: 1625.0 GBP
Availability: InStock

KernSKU: OZP 558

All prices exclude VAT, which will be added at checkout.

Price:

£1,625.00

Quantity:

The KERN OZP stereo zoom microscope stands out through its above-average magnification range and its robust shape which is also ergonomic, it enables effortless, simple working over a period of several hours
The KERN OZP series is available as a strong, continuously adjustable 3W LED reflected and transmitted light variant for the very best illumination of your sample
With its large working distance, an extra large field of view and its brilliant resolution, the KERN OZP provides sharp, high-contrast, colour-true images.

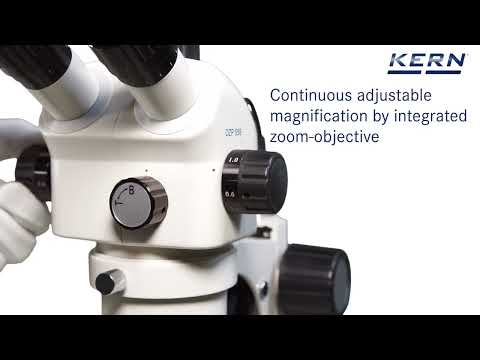

As standard this microscope offers you continuous total magnification of 6 x–55 x
There is a choice of a binocular model as well as a trinocular model for connecting a camera for documentation purposes and for quality reports
The pillar stand is particularly flexible due to its variable and sturdy adjustment mechanism and therefore enables ergonomic working procedures.
A large selection of eyepieces, (universal) stands, a darkfield kit, external illumination units as well as auxiliary objectives and more are available as accessories
A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery

Technical Data

Optical system	Greenough
Tube type	Trinocular
Ocular magnifications	10 x
Ocular visual field	23 mm
Magnification ratio	9,2:1
Zoom [Min]	0,6 x
Zoom [Max]	5,5 x
Illuminance	Reflected light, Transmitted light
Illumination intensity transmitted light	3 W
Illumination type transmitted light	LED
Illumination intensity incident light	3 W
Illumination type incident light	LED
Focusing mechanism	coarse drive
Working distance	108 mm
Sample height [Max]	110 mm
Stand type	pillar
Dimension (W×D×H)	330×285×470 mm

Product Information
Part Number	OZP 558
Zoom Ratio	.6-5.5X
Illumination	Reflected light 3W
Tube Type	Trinocular
Manufacturer	Kern
