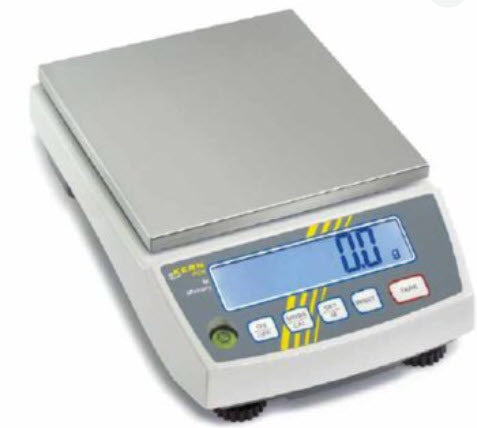

Kern PCB 100-3 Precision balance PCB The standard in the laboratory, Weighing range 100g, Resolution 0.001g, Pan Size 81mm Dia, Linearity 0,003g

PRE-TARE function for manual subtraction of a known container weight, useful for checking fill-levels

Freely programmable weighing unit, e.g. display direct in special units such as length of thread g/m, paper weight g/m2, or similar

With the recipe function you can weigh the different ingredients of a mixture. As a check, you can also call up the total weight of all the ingredients

Plus/minus weighing procedures

Ring-shaped draught shield standard, only for models with weighing plate size , weighing space ØxH 90×40 mm

Note: Individual header data: the free software KERN SHM-01 can be used to print 4 header lines on the printout for printers 911-013, YKN-01, YKB-01N, YKE-01 and YKC-01 (in combination with YKI-02). You can easily download the software here (unfortunately it cannot be sent out as a CD): Software full-version

• Weighing range Max: 100 g
• Readout d: 1 mg
• Max. Length:
• Read Out Length:
• Max. Hardness Leeb:
• Min. Hardness Leeb:
• Read Out Hardness Leeb:
• Max. Force:
• Read Out Force:
• Verification value:
• Verification class:
• Minimum load:
• Reproducibility-Linearity: 1 mg3 mg
• Verification:
• Price Verification:
• DKD Certificate: 963-127
• Price DKD certificate: 72
• ISO calibration certificate:
• Price ISO calibration certificate:
• Dimensions housing WxDxH: 163 mm x 245 mm x 79 mm
• Material weighing plate:
• Dimensions weighing plate WxDxH:
• Weighing area WxD:
• Weighing space WxDxH:
• Display digit height: 1.500 cm
• Weighing units: ct dwt g gn mo oz ozt tl (HK) tl (Tw) tol
• Stabilisation time: 3 s
• Weighing system: Strain gauge
• Rechargeable battery: Rchrg. battery optional
• Charging time: 8 h
• Operating time Backlight on: 24 h
• Input voltage: 220 V – 240 V AC 50 Hz
• Power Supply For Country: CH EURO UK US
• Power Supply Kind: Mains adapter external
• Battery UN Number:
• Operating time: 12 h
• Reference quantity:
• Environment max. humidity: 0.8
• Environment max. temperature: 35 °C
• Environment min. temperature: 5 °C
