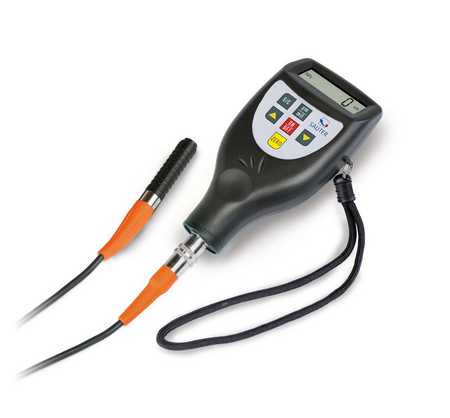

Description
Description:
- External sensor for difficult-to-access measurements
- Data interface RS-232, standard
- Base plate and calibration foils included
- Delivered in a robust carrying case
- Offset-Accur: This function allows you to adjust the instrument precisely on the locally measured range by a two-point calibration. This results in a superior accuracy of approx. 1 % of the measured value
- Selectable measuring units: ?m, inch (mil)
- Auto-Power-Off
Feature:
- Measurement precision: - Standard: 3%,3% of measured value or ± 2,5 ?m - Offset-Accur: 1% of measured value or ± 1 ?m
- Type
- - Convex: 1,5 mm - Flat: 1,5 mm - Concave: 25 mm
- Type - Convex: 3 mm,3 mm - Flat: 5 mm - Concave: 50 mm,50 mm
- Minimum thickness of base material: 300 µm
- Overall dimensions W×D×H 131×65×28 mm
- Battery operation, batteries standard 4×1.5 V AAA
- Net weight approx. 0,10 kg
Technical Data
| Measuring range coating thickness [d] (µm) | 100 µm; 1250 µm |
| Readability coating thickness [d] (µm) | 0,1 µm; 1 µm |
| Tolerance (% of [Max]) | 3% |
| Units | µm, inch (mil) |
| Coating thickness gauge sensor type | FE, NFE |
| Test object thickness coating | Non-magnetic coatings on iron, steel, Type F, Coatings on non-magnetic metals, type N |
| Battery | 4×1.5 V AAA |
| Increase in measurement accuracy possible | |
| Material housing | plastic |
| Dimensions completely mounted (W×D×H) | 131×65×28 mm |
| Cable length | 1 m |
| Sensor placement position | external |
