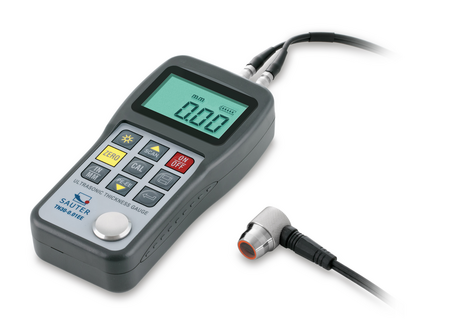

KERN® Ultrasonic Thickness Gauge external TN 60-0.01EE, Material thickness pulse-echo [Max] (mm) 600 mm

• Description

  • External measuring head
  • USB data interface, as standard
  • Scan mode (10 measurements per sec.) or single point measuring mode possible
  • Internal memory for up to 20 files (with up to 100} values per file)
  • Selectable measuring units: mm inch
  • Two measuring modes to determine material thickness:
    - Pulse-Echo mode
    - Echo-Echo mode
  • Echo-Echo measuring: Determining the actual thickness of materials irrespective of any coating which might be present. In this way, the wall thickness of pipes, for example, can be determined in a non-destructive manner, without having to remove the coating and the measurement can be shown on the display, with the adjustment for the coating thickness already taken into account
  • Echo-Echo measurements are only possible with the measuring head included as part of the delivery (SAUTER ATU-US12, see accessories)
  • Scope of delivery: Operating instructions, batteries, external measuring head (? 10 mm) and ultrasound contact gel
  • Delivered in a robust carrying case

Technical Data
