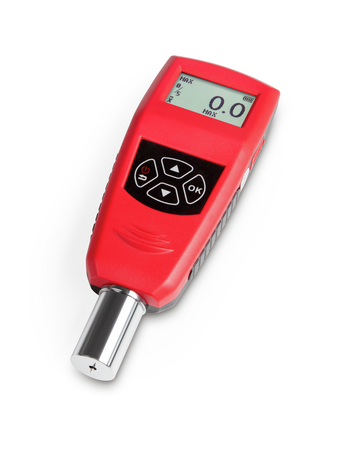

- To measure the hardness of plastics through penetration measurement
- Different measuring modes: Average value, maximum value, chronological sequence
- Limit alarm function, which triggers an audible and visual signal when the value goes below or above the defined limits
- Entering the workpiece number is possible
- Setting the measuring time from 0 to 99 seconds
- Recommended for internal comparison measurement
- Can be attached to the test stand SAUTER TI-HED to improve the measurement result
- Large display with backlight
- Battery status indicator
- USB data interface, as standard
- Delivered in a robust carrying case
Technical Data
| Hardness scales | Shore D |
| Measuring range Shore [Max] | 100 HD |
| Readability Shore [d] | 0,1 HD |
| Tolerance (% of [Max]) | 1% |
| Hold function | |
| Peak function | |
| Function for averaging | |
| Interfaces | USB-Device |
| Material housing | plastic |
| Measuring probe diameter | 18 mm |
| Test force Hardness measurement | 50 N |
| Product family | HE |
| GTIN/EAN number | 4045761274020 |
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
