Description
- LCD touchscreen with touch pen

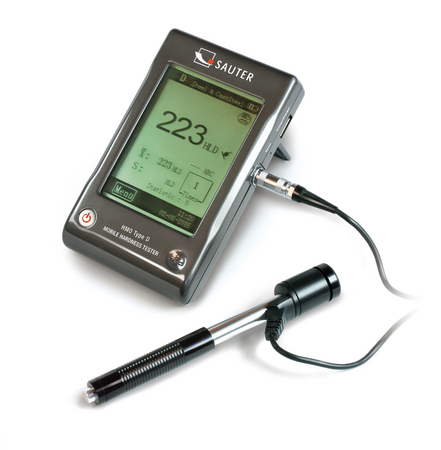

- Automatic recognition of the impact (rebound) sensor connected to the SAUTER HMO
- Mobility: In comparison with stationary table-top devices and testing devices with an internal sensor, using the SAUTER HMO offers the highest level of mobility and flexibility
- All measurement directions possible (360°) by defining the direction of impact on the device
- USB socket for connection to the printer and charging the batteries
- Hardness test block for calibration included
- Internal data memory for up to 500 values
- Mini statistics function: Displays the measure value, the average value, the difference between the maximum and minimum values, date and time
- Measurement value display: (B and C), Vickers (HV), Brinell (HB), Leeb (HL), tensile strength (MPa)
- Automatic unit conversion: The measuring result is automatically converted into all specified hardness units
- Delivered in a robust carrying case
Technical Data
| Measuring range Leeb | 170 – 960 |
| Readability [d] hardness (Hlx) | 1 |
| Tolerance (% of [Max]) | 1% |
| Units | HL, HV, HB, HRB, HRC, MPa |
| Hardness scales | HLD |
| Test object thickness [Min] | 3 mm |
| Test object minimum weight [Min] | 3 kg |
| Memory function | |
| Statistic function | |
| Function for averaging | |
| Material housing | plastic |
| Measuring probe diameter | 2 cm |
| Measuring probe length | 14,6 cm |
| Test block inclusive | |
| Product family | HMO |
| GTIN/EAN number | 4045761139664 |
