Description

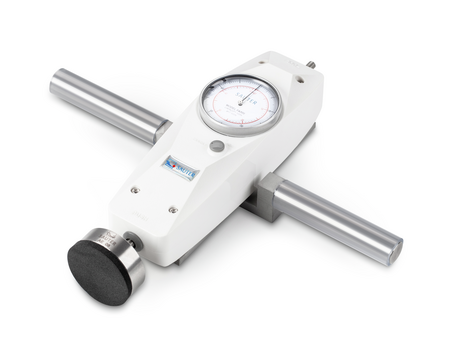

- For testing the stability of tombstones in accordance with VSG 4.7
- Pressure disc with foam rubber attachment
- Stainless steel handle with rubber covering for secure handling
- No electrical power supply required due to mechanical measuring system
- Real time or peak hold switch to observe transients or capture peaks by a drag indicator
- For tensile force and compressive force measurements
- Scope of delivery:
- 1× FA 500
- 1× AE 08
- 1× AFH 04
-
Technical Data
Measuring range force [Max] (N) 500 N Readability force [d] (N) 2,5 N Tolerance (% of [Max]) 1% Peak function Yes Material housing plastic Dimensions completely mounted (W×D×H) 232×60×51 mm Net weight approx. 1,8 kg GTIN/EAN number 4045761126787
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
