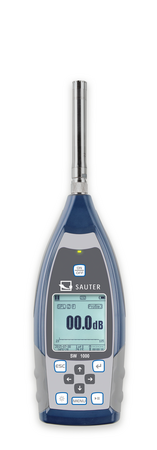

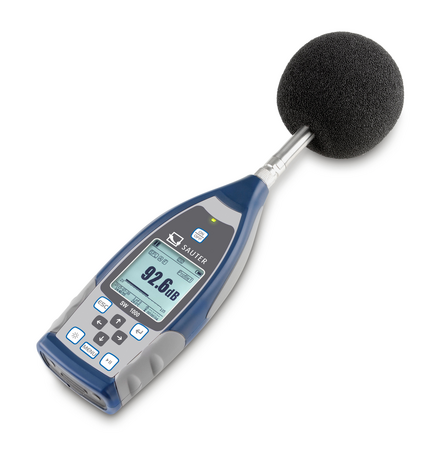

Kern Sound Level Meter SW 1000 Measuring range Sound 20 dB – 134 dB Readability sound [d] (dB)0,1 dB

Description

• Ideal for measurements for workplaces outdoor, e.g. at airports, on building sites, in road traffic etc. with wide frequency access
• Modern microcontroller architecture for increased stability and accuracy
• A specially-developed algorithm permits a compliant dynamic range of > 123 dB
• Three profiles and 14 user-defined measurements can be calculated in parallel with different frequency and time weighting

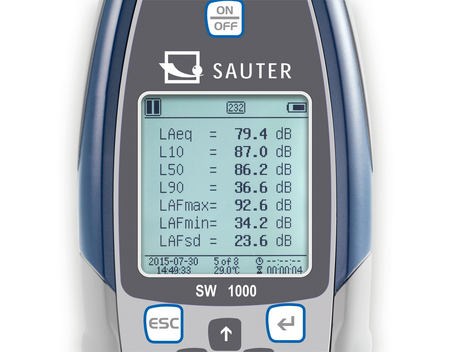

• LN statistics and display of the graph showing the progression of time
• User-defined integral interval measurement up to a maximum of 24 hours is possible
• Frequency weighting (filter) A, B, C, Z
• Time interval during measurement: F (fast), S (slow), I (pulse)
• Freely-definable limits for the output of an optical alarm signal
• Peak Hold function to capture peak value

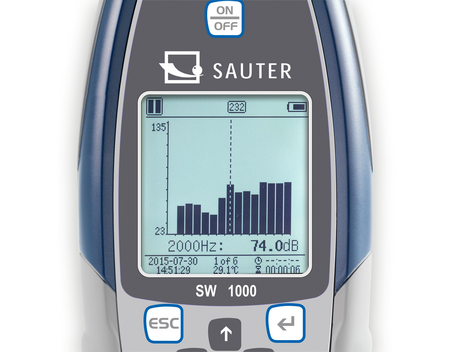

• Octave function for targeted sound analysis, can be expanded to 1/3 octave through the purchase of a licence
• TRACK function with graphic display of a measurement
• Calibration mode (with optional calibrator)

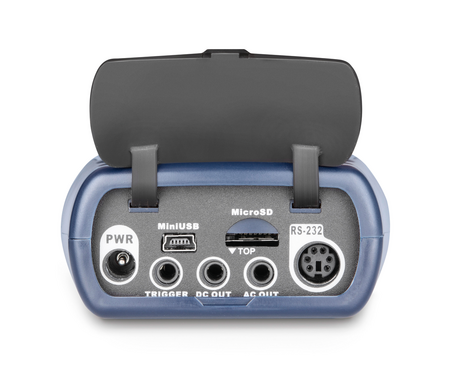

• Trigger mode: external start/stop of measurement via 3,5 mm connector
• Automatic measurement for timer function is possible
• Operating languages: EN, DE, FR, ES, PT
• Option of fitting a stand on the rear of the housing, ¼" thread
• Delivery in robust transport case

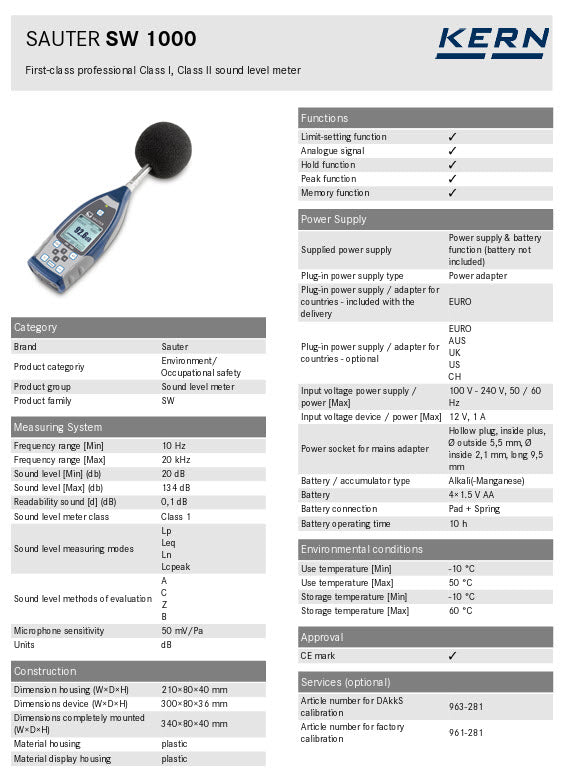

• Technical Data

  Measuring range Sound	20 dB – 134 dB
  Readability sound [d] (dB)	0,1 dB
  Units	dB
  Sound level measuring modes	Lp, Leq, Ln, Lcpeak
  Sound level methods of evaluation	A, C, Z, B
  Frequency range	10 Hz – 20 kHz
  Memory function
  Hold function
  Peak function
  Limit-setting function
  Microphone sensitivity	50 mV/Pa
  Battery	4×1.5 V AA
  Material housing	plastic
  Dimensions completely mounted (W×D×H)	340×80×40 mm
  Product family	SW
